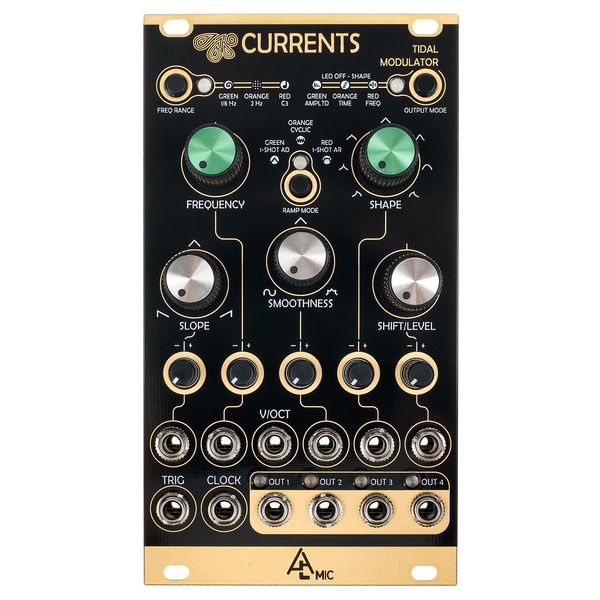

After Later Audio Currents
Start 360°
Eurorack Module
- Tidal Modulator - works as LFO, VCO, AD- and AR-envelope
- Frequency range: 2 min - - 2 kHz (expandable via CV offset)
- V/Oct tracking and exponential FM
- Shape and slope controls to control segment times and waveforms
- Smoothing or waveshaping of the output signal possible
- All parameters CV controllable
- 4 Independent outputs with different operating modes, e.g. for phase-shifted function generators, polyrhythmic LFOs and much more
- Trigger input for AD / AR modes and LFO reset
- Clock input for PLL mode
- Power consumption: 50 mA (+12 V) / 20 mA (-12 V)
- Width: 14 U
- Depth: 25 mm
available since
January 2023
Item number
558567
sales unit
1 piece(s)
Analog
No
Digital
Yes
Width
14 TE / HP
