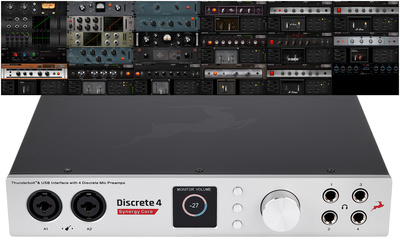

Antelope Discrete 4 Synergy Cor B-Stock

B-Stock with Full Warranty

Return that may have slight traces of use.

Thunderbolt / USB Audio Interface with 36 DSP and FPGA real-time effects

  • 2 DSP and 1 FPGA to process Antelope FX
  • 24 Bits / 192 kHz
  • Up to 121dB dynamic range
  • <1ms latency for monitoring, effects and microphone simulations
  • Antelope 64 bit acoustically focused clocking
  • Dimensions (W x D x H): 261 x 208 x 44 mm
  • Weight: 1.7 kg
  • System requirements: Windows 10, OS X: 10.11 / 10.12 / 10.13
  • Incl. power supply and USB cable

Connections:

  • 2 Microphone / line / instrument inputs (XLR / TRS combo socket)
  • 2 Microphone / line inputs (XLR / TRS combo socket)
  • 4 Line outputs (6.3mm TRS jack)
  • 2 Monitor outputs (6.3mm TRS jack)
  • 4 Stereo headphone outputs (6.3mm TRS jack), each with its own volume control
  • ADAT input / output
  • S / P-Dif input / output (RCA)
  • 2 Wordclock outputs (BNC)
  • Thunderbolt and USB 2.0 port

Includes 36 real-time synergy core effects, modelled preamps, dynamics and equaliser:

  • Gyraf Gyratec IX (Tube Mic Preamp)
  • BA-31 (Mic Preamp)
  • VCA160 (Compressor)
  • Stay-Levin (Compressor)
  • FET-A76 (FET Compressor)
  • FeedForward Antelope Compressor (Compressor)
  • X903 (Compressor/Limiter)
  • Power EX (Expander)
  • VEQ-1A (Tube EQ)
  • VEQ-HLF (Passive High/Low Filter)
  • VMEQ (Tube EQ)
  • Clear Q (Parametric EQ)

Modelled guitar amplifiers and speakers:

  • Plexi 59 (Tube Guitar Amp)
  • Bass SuperTube VR (Tube Guitar Amp)
  • Darkface 65 (Tube Guitar Amp)
  • Top30 Bright (Tube Guitar Amp)
  • Tweed Deluxe (Tube Guitar Amp)
  • Overange 120 (Tube Guitar Amp)
  • BurnSphere Lead (Tube Guitar Amp)
  • Marcus II Lead (Tube Guitar Amp)
  • Modern CH3 (Tube Guitar Amp)
  • Rock 75 (Tube Guitar Amp)
  • Rock 22.10 (Tube Guitar Amp)
  • Darkface 65 2x12 (Guitar Cabinet)
  • Bass SuperTube VR (Guitar Cabinet)
  • Darkface 65 (Guitar Cabinet)
  • Top30 Bright (Guitar Cabinet)
  • Tweed Deluxe (Guitar Cabinet)
  • Overange 120 (Guitar Cabinet)
  • BurnSphere Lead (Guitar Cabinet)
  • Marcus II Lead (Guitar Cabinet)
  • Modern CH3 (Guitar Cabinet)
  • Rock 75 (Guitar Cabinet)
  • Rock 22.10 (Guitar Cabinet)

Additional effects:

  • Aura verb (reverb)
  • Power Gate

Further Information

Recording / Playback Channels 14x16
Number of Mic Inputs 4
Number of Line Inputs 4
Number of Instrument Inputs 2
Number of Line Outputs 6
Headphone Outs 4
Phantom Power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 1
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 2xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 2
Width in mm 261 mm
Depth in mm 208 mm
Height in mm 44 mm
$949
The shipping costs are calculated on the checkout page.
Only a small number of pieces available
Only a small number of pieces available

This item is in stock and can be dispatched immediately.
