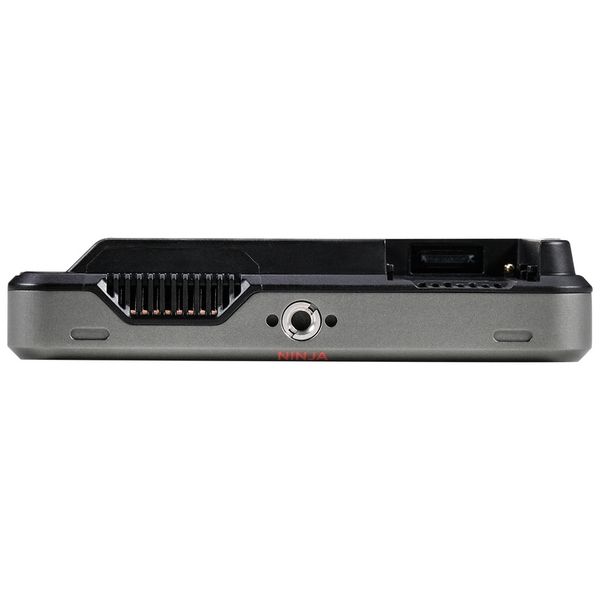

Atomos Ninja V+

2

5'' Monitor/Recorder

  • Allows recording at up to 8K30p and 4K120p directly from the camera's sensor
  • H.265 HEVC 10-bit 4:2:2 signal processing
  • 10-Bit Exterior Viewable Monitor
  • AtomHDR Mode with 10-Stop Dynamic Range
  • Records to 2.5" mini or standard SSDs
  • 10-Bit 4:2:2 ProRes & DNxHR encoding
  • Touchscreen: 5.2" SuperAtom IPS panel (capacitive touch)
  • Aspect ratio: 16:9
  • Resolution: 1920 x 1080
  • PPI: 427
  • Bit depth: 10Bit (8+2 FRC)
  • Brightness (cdm2 / nits): 1000 +/- 10%
  • Colour space: Rec.709
  • Calibration support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
  • 1x 2.5" SATA Slot (SSD)
  • Housing: Aluminium with ABS plastic
  • Cooling: Actively controlled fan and heat sink
  • Tally light: Rear and front
  • Dimensions: 151 x 91.5 x 31 mm
  • Weight: 360 g

Video input:

  • HDMI: 1 x HDMI (2.0) 4k p60
  • HDMI RAW: Apple's ProRes RAW up to 8k
  • SDI: Optional via AtomX SDI module (not included)
  • SDI RAW: Optional activation key required (not included)
  • Bit depth: 8/10bit video / RAW up to 12bit
  • Video Chroma Subsampling: 420 and 422
  • HDCP copy protection: not supported

Video output:

  • HDMI: 1 x HDMI (2.0) 4k p60
  • SDI loop out: Optional via AtomX SDI module (not included)
  • SDI play out: Optional via AtomX SDI module (not included)
  • Video Chroma Subsampling: 422
  • Bit depth: 10Bit video

Power supply:

  • Input voltage: 6.2 to 16.8 V
  • Operating voltage: 5.8 to 7.2 V
  • Compatible batteries: NPF L-series
  • Continuous power supply: Via optional AtomX SYNC module (not included).
  • DC input connection: Via DC socket on battery eliminator
  • Dtap: Via battery eliminator and optional DTap to DC cable (not included)

Scope of delivery:

  • 1x Ninja V+ unit
  • 1x Hard case
  • 1x Master Caddy
  • 1x Battery Eliminator
  • 1x DC power supply

available since March 2022
Item number 533391
sales unit 1 piece(s)
Design Field Recorder
Recorder Yes
Screen size [Inches] 5"
Screen resolution 1920 x 1080
Record tracks 1
HDMI input Yes
SDI input No
HDMI Output Yes
SDI Output No
Streaming Function No
Battery Optional
Storage type SSD
Audio IN Yes
Audio Monitor Yes
Loudspeaker No
Scopes Yes
Tally No
Recording mount 1/4 "internal thread
$711
The shipping costs are calculated on the checkout page.
In stock
In stock

This item is in stock and can be dispatched immediately.
