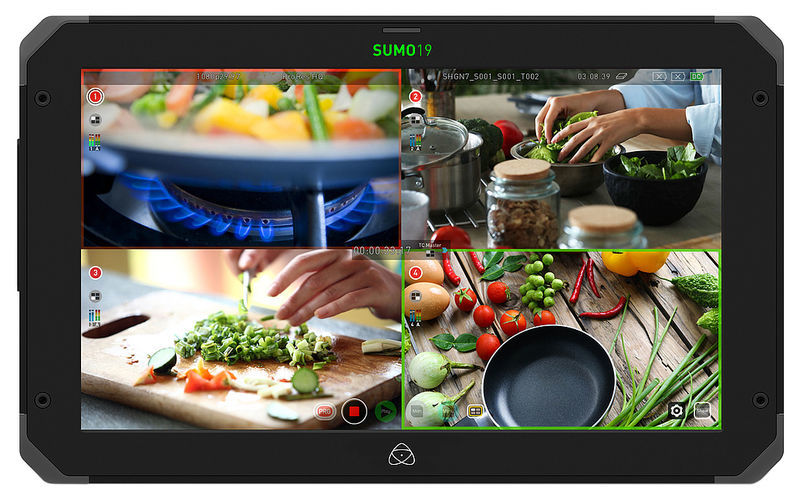

Atomos Sumo19; 19" live switcher, monitor and recorder with AtomHDR; Up to five 1080p60 signals can be recorded simultaneously; four separate ISOs and the output signal can be stored in Apple ProRes or Avid DNx on an SDD; records in 4K 12bit Raw, ProResRAW or 10bit ProRes/DNxHR; monitor with 10 f-stops dynamic range and 10-bit processing; accepts all log formats as well as PQ and HLG; can display footage in full HDR thanks to 1200 nit resp. cd/m² display; included in delivery: 1x Atomos Sumo19 / 1x Master Caddy II / 1x power supply unit / 1x mounting plate for 2 V-Mount adapter plates, VESA hole 10x10 cm / 2x feet incl. mounting screws; technical data. Technical data:; Touchscreen:; Size: 19"; Resolution: 1920 x 1200; PPI: 120 ; Aspect ratio: 16:9 native; Colour range: REC.709 HDTV; Look up Table (LUT) support: 3D LUT (.cube format); Anamorphic De-Squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3; Technology: SuperAtom IPS Panel (Capacitive Touch); Video Input/Loop Out:; 1x HDMI (2. 0) / Quad Link 4x 3G SDI or 12G Single Link SDI; Video Output (Play Out):; 1x HDMI (2.0) / 1x 4K-SDI 12G/6G or HD-SDI 3G/1. 5G; Audio In/Out (48kHz PCM Audio):; HDMI: 2 or 8 channels, 24-bit, depending on camera; SDI: 12ch 48kHz 24-bit; Analogue Audio: 2ch balanced XLR analogue In/Out (direct XLR connection); Dynamic Range - >90dB; Maximum Signal Strength - +24dBu; Maximum Analogue Gain - +52dB; 48V Phantom Power for Mic; Headphone Out: 3.5mm; Built-in Speakers: Yes; Power Supply:; Power Consumption: 75W; Compatible Batteries: V-Lock / Anton Bauer via XLR terminal (optional mounting plates available) - Recommended 95Wh or greater; Incoming Voltage - Battery: 14.4V nominal; DC Connector: 1x DC In (12- 16.8V); Continuous Operation: Primary/Secondary Battery System, Batteries can be changed without losing power; General Specifications:; Mounting Points: 1/4"-20 Screw - 4x Top, 4x Bottom, 2x Side / 3/8"-16 Screw - 2x Top, 2x Bottom, 1x Side / VESA Mount on Rear; Material: Aluminium alloy with built-in protection; Product Dimensions (WxHxD): 504 x 310 x 63 mm (without stand) / 504 x 152 x 251 (with stand); Weight - Without battery and stand: 5.45 kg; Weight - With stand: 6.0 kg
