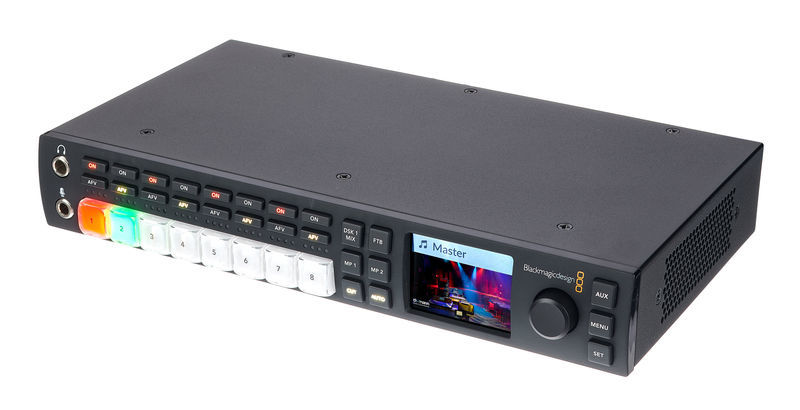

Blackmagic Design ATEM Television Studio HD

12 ratings

Production Mixer

Easy to control via the front panel or remotely via a software control panel
Integrated LCD for monitoring program and sound levels and for changing menu settings
Resize and scale live video in real time
Create professional picture-in-picture effects with customisable frames, shadows and lighting
17 DVE transitions selectable when switching sources
Four SDI and four HDMI inputs with resynchronisation
One upstream keyer and two downstream keyers
One chroma keyer and one transmission keyer (DVE)
Six levels
Two pattern generators and two colour generators
DVE with 3D borders and shadows
Storage for up to 20 of your own graphics and logos in the media pool for access via the media player
Compatible with all HD formats up to 1080p/60
Storable macros
SDI talkback outputs support n-1
Powerful integrated audio mixer
SDI rates: 270 MBit, 1.5 G, 3G
RS-422 connection and network port for remote control
Includes SD card with software and operating instructions

Inputs:

4x SDI (10 bit SD/HD switchable, 2 embedded audio channels)
4x HDMI Type A (10 bit SD/HD switchable, 2 embedded audio channels)
Reference input (Tri-Sync or black burst)
2x XLR audio input

Outputs:

5x SDI program outputs (10 bit SD/HD switchable)
1x SDI and 1x HDMI multiview output

Further Information

Streaming via USB	No

These are other customers' choices:

Customers who looked at this item have bought these:

	40% bought this exact product Blackmagic Design ATEM Television Studio HD Available immediately Available immediately This item is in stock and can be dispatched immediately. Standard Delivery Times	$955 Add to Basket
	22% bought Blackmagic Design ATEM Mini Pro	$555
	16% bought Blackmagic Design ATEM Mini Pro ISO	$825
	8% bought Blackmagic Design ATEM Mini	$289
	5% bought Blackmagic Design ATEM Mini Extreme ISO	$1,239
Our most popular Video/AV Mixers

12 Customer Ratings

5

7 Customers

7 customers have given this product a 5-star rating.

Of these, 7 customers have written no texts or given their feedback in another language.
4

3 Customers

3 customers have given this product a 4-star rating.

No customer has written a text about this; or they have written a text in a different language.
3

1 Customer

One customer has given this product a 3-star rating.

No customer has written a text about this; or they have written a text in a different language.
2
1

1 Customer

One customer has rated this product with one star.

No customer has written a text about this; or they have written a text in a different language.

4.3 /5

picture/sound
quality

It's classic Blackmagic

Brane, 26.12.2020

In short: works fine, loud fans, there are a few classic Blackmagic gotchas.

Coming from ATEM TV Studio (the previous, 19" fanless version) the first thing you notice when you turn it on, is the fans. You get used to them over time, but they're definitely louder than laptop fans for example, and that's on their lowest RPM. They only get louder as the unit gets hotter. In a loud-ish venue, outside, etc. - it's perfectly fine. Not good if you're planning on using it in a quiet studio, especially not near a mic. There are guides out there on replacing the fans with quieter Noctua ones. We're planning on doing that, but this will probably void the warranty.

I haven't found a way to dim the lights on buttons 1-8. In very dark environments, the green lights especially are definitely annoyingly bright. The buttons can be useful in a pinch, solidly built, but for any more complex production, expect to use ATEM software control, or some other means of controlling the switcher.

Multiview output resolution & refresh rate is tied to the global resolution & framerate. In some cases you get an option to choose interlaced or progressive output (only for multivew!), in other cases you don't. Keep this in mind, if you're planning on using a PC monitor. 1080p59.94 will work fine, but 1080p29.97 (29.97Hz) will likely not work with a PC monitor. You will have an option to use 1080i59.94 (59.94Hz) multiview output in that case, which will likely work with your PC monitor, but the image on the monitor will likely appear soft and jittery, as PC monitors usually don't really know what to do with interlaced signals. No problems with camera / broadcast style monitors.

Unfortunately the AES/EBU input is gone, but, there are XLR inputs, which have a low enough noise floor, seems lower than on most prosumer level camcorders. If you're planning on using those, you will likely need a delay box. We're using DEQ2496 for that (and some light sound processing).

Other than that, it works as expected, no problems so far.

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

Great device, big flaw

Stage Production Services, 29.01.2021

fantastic device, well built hardware and does what you need.
BUT.
only accepts one input, so all video inputs need to be 1080p30 or all 720p30. you cant mix and match input types, which easily causes problems.

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

Original review (Show translation)

Unfortunately there was an error. Please try again later.

TOP im Vergleich mit anderen Herstellern!

Dirk79, 24.11.2020

Zu dem Preis bekommt ihr die Qualität nicht bei einem anderen Hersteller. Zumindest Stand 11/2020.
Ihr habt hier Studio-Equipment zu einem Top-Preis.
Wir haben einen einfach TFT als MultiView im Betrieb über den HDMI-Ausgang.
Der Program-Out geht auf einen SDI-Distributor von Blackmagic und verteilt an zwei Beamer und zwei Bildschirme.
Als Eingänge kommen eine Kamera über SDI, eine über HDMI und ein Laptop über HDMI rein. Audio haben wir aus dem Mischpult über XLR eingeschleift oder vom Laptop über HDMI.
Die Software benötigt man zum bedienen nicht. Zum einrichten ist die aber sehr hilfreich! Wir bedienen ausschließlich über das Gerät selbst und haben damit nie Probleme oder Einschränkungen.
Die Montage haben wir ohne die optionalen Rackhalter selbst "gebastelt". Ihr müsst nur darauf achten, dass die Lüfter die Luft an der linken Geräteseite ansaugen und rechts ausblasen.
Einen Ein/Aus-Schalter gibt es nicht. Ein Kalgerätekabel liegt auch nicht bei! Also eigentlich liegt außer 4 Zetteln nichts dabei. Finde ich jetzt aber auch nicht schlimm, da man sonst nur das 300ste USB-Kabel und 150ste Kaltgerätekabel in seine Sammlung aufnehmen kann.
Der Lüfter im Betrieb ist zwar hörbar aber leise.
Wir setzen den Mischer in der Kirche ein.
Wenn ihr an so ein Gerät herankommt, dann schlagt zu!

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

Original review (Show translation)

Unfortunately there was an error. Please try again later.

Bon produit

LAQFR, 30.12.2020

Bon produit mais n'est plus livré avec la carte SD.
Prévoir câble d'alimentation non fourni, cela mériterait d'être signalé dans le descriptif.

Helpful · Not helpful · Report

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

B-Stock from $879 available

$955

The shipping costs are calculated on the checkout page.

Available immediately

Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Add to wish list

sales rank in this product group	9
at thomann.de	5564

item number	485828
sales unit	1 piece
available since	February 2020
