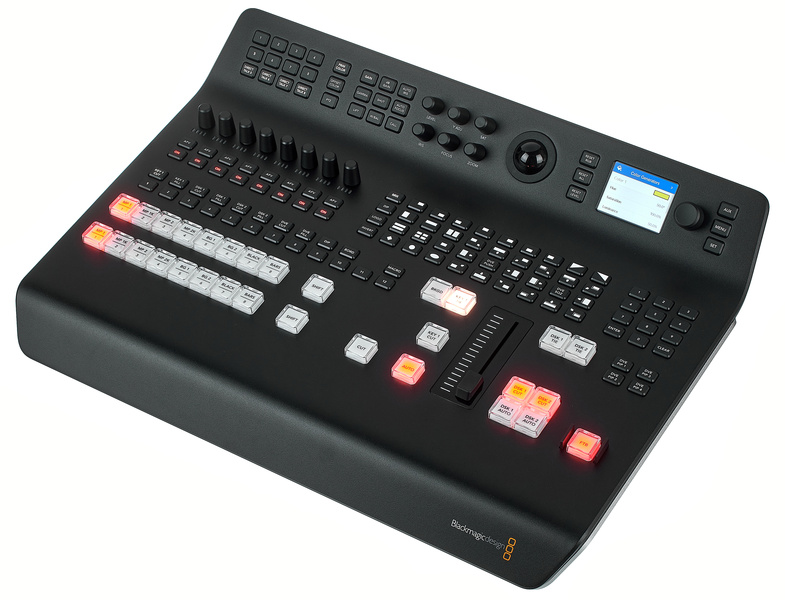

Blackmagic Design ATEM Television Studio Pro 4K

Live production mixer for broadcast and AV users

  • Digital 4K (3840 x 2160) video mixer with control panel
  • 8 Inputs and outputs 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI
  • LCD colour display for video
  • Audio and timecode monitoring
  • Extensive controls for live video and sound mixing as well as colour corrections
  • Processes video signals up to 3840x2160 / 60p
  • 2 Built-in media players, each with a key and a fill channel
  • Media pool with storage space for 20 still images in PNG, TGA, BMP, GIF, JPEG or TIFF image formats
  • 4K (3840 x 2160) multiviewer with 10 views
  • The ATEM Software Control Panel can run on several PCs or MACs at the same time, so that several operators can use different functions (e.g. one operator each for PTZ control, sound mixer and video mixer)
  • The supplied software includes a plug-in to load the images directly from Photoshop into the ATEM media pool (the following image formats are supported: TIF, PNG, TGA)
  • Resynchronisation of the signal at all inputs
  • Standard converter at all inputs, so that each video signal is automatically converted into the video standard selected for working on the mixer
  • Extensive Fairlight audio mixer functions (parametric 6-band equaliser, compressor, gate, limiter)
  • In addition, there is an audio separation function for dual mono channels and a stereo simulator with audio delay at the XLR inputs
  • Audio follows video function and separate amplifiers for each audio channel
  • 1 Upstream keyer for chroma, linear and luma keys
  • 2 Downstream keyers
  • Talkback support via SDI
  • Includes operating software ATEM Software Control for Mac 10.12 Sierra, Mac High Sierra 10.13 or higher and Windows 8.1 (64 bit) or Windows 10 (64 bit)
  • Power supply: 1 internal connection for 100-240 V AC
  • 4-Pin 12 V DC
  • Power consumption: 70 W.
  • Dimensions: 423 x 302 mm
  • Weight: approx.4.2 kg

Inputs:

  • 8 x 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI with embedded audio
  • 1 x Reference with black burst
  • Tri-Level Sync (BNC)
  • 2 x Audio (XLR)
  • 1 x Microphone 6.3 mm jack (f) for talkback via SDI

Outputs:

  • 1 x Program 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI with embedded audio
  • 1 x Multiview 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI
  • 1 x Multiview HDMI
  • 8 x Talkback program 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI
  • 1 x Aux Video (BNC)
  • 1 x Audio 6.3 mm jack (f) for talkback via SDI

Other connections:

  • 1 x Remote control via Ethernet, RJ-45
  • 1 x Remote control via RS-422
  • D-Sub 9-pin
  • 1 x USB 2.0 type B

Further Information

Streaming via USB No
