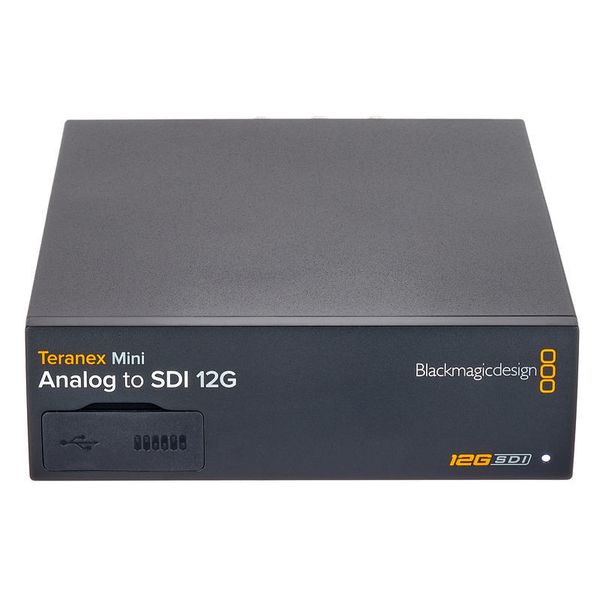

Blackmagic Design Teranex Mini Analog - SDI 12G

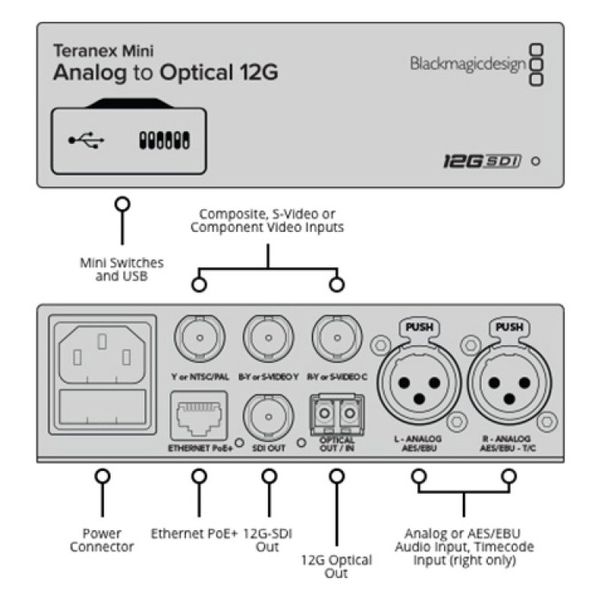

Blackmagic Design Teranex Mini Analog - SDI 12G; Converter from analogue video to 12G-SDI; Converts incoming analogue video signals to SD, HD, 6G and 12G-SDI; For converting signals from analogue devices such as Betacam SP, VHS, set-top boxes, game consoles and HDV cameras to video signals in SD/HD/Ultra HD SDI video up to 2160p/60; Connectors: ; SDI video outputs: 2x 12G-SDI outputs; Analogue video inputs: FBAS, Y/C or component; Analogue audio inputs: 2 channels balanced analogue audio via XLR connectors, Right XLR socket can be configured for timecode input; Digital audio inputs: 4 channels 110 ohm balanced digital audio via XLR sockets, Right XLR socket configurable for timecode input; Multirate support: SDI output switchable between HD for FBAS and S-Video and Ultra HD for component HD; Updates and configuration: USB or Ethernet; Reclocking: yes; Standards:; SD video standards: 525i/59.94 NTSC; 625i/50 PAL; HD video standards: 720p/50; 720p/59.94; 720p/60 1080i/50 1080i/59.94 1080i/60 1080p/25 1080p/29.97 1080p/50 1080p/59.94; Ultra HD video standards: 2160p/25; 2160p/29.97; 2160p/50; 2160p/59.94; SDI compliance: SMPTE 259M; SMPTE 292M; SMPTE 296M; SMPTE 424M; SMPTE 2081-1; SMPTE 2081-10; SMPTE 2082-1 and SMPTE 2082-10; SDI video rates: SDI video ports are switchable between standard definition and high definition; SDI video sampling frequency: 4:2:2 and 4:4:4; SDI audio sampling frequency: standard television sampling rate of 48 kHz and 24 bits; SDI colour accuracy: YUV 4: 2:2 and RGB 4:4:4 in HD, 2K and 4K; SDI colour space: REC 601, REC 709; analogue video standards: 525i/59.94 NTSC; 625i/50 PAL; analogue colour space: REC 601, REC 709; analogue colour accuracy: 4:2:2; compatible operating systems: Mac Catalina 10. 15, Mac Big Sur 11.1 or higher / Windows 10, 64 bit; Control settings: Mini-Switches, USB and Ethernet via free utility or via optional front panel (Smart Panel) #485905; Power supply: built-in international AC power supply with IEC C14 socket (IEC power cable not included), 100 - 240 V AC input voltage; Power supply via Ethernet: can be 48 V DC via PoE (Power over Ethernet); Power consumption: 16 W; Dimensions: 140 x 44 x 170 mm; Weight: 640 g
