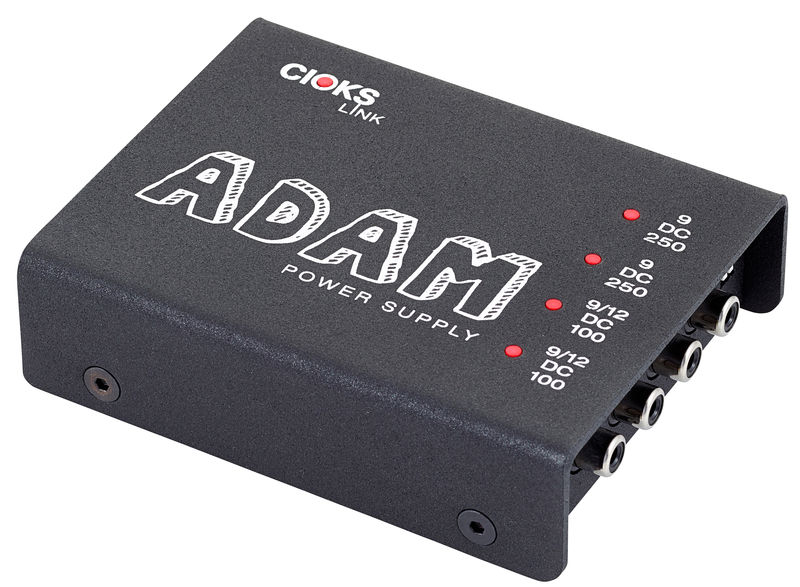

Cioks Adam Link

Power Supply

  • 700 mA power supply with 4 outputs for effect pedals Pedals
  • 4 Isolated outputs with 9 or 12V
  • Output 1-2: 9 or 12V DC / 100 mA respectively
  • Output 3-4: 9VDC / 250mA
  • Short circuit protection
  • LED monitoring for each output
  • 120 or 230V volts
  • Cioks Link AC allows the link adapter sold separately to connect multiple devices and only use a power cord
  • 6 x Flex Cable Included: 2 x 1030 2 x 1050 1 x 5050 and 1 x 1035
  • Measurements: 115 x 88 x 31 mm
  • Weight: 800 g
  • 2 m Power connection cable

Further Information

DC/AC current AC/DC
Output current in mA 700 mA
9 V Yes
12 V Yes
18 V No
Secondary voltage No
Multi-output power supply Yes

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 5 % additionally!
Harley Benton SpaceShip 60XL + Harley Benton Mounties + Cioks Adam Link +
8 more
Configure bundle now
starting from $173
86 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 /5
  • quality
Total
quality
Tiny and rugged!
02.10.2016
Bought this for my Pedaltrain Nano. I wanted to have that board alway ready to go without the hassle of carrying extra cables or adapters.

Mounting it to de pedaltrain was a brease, it comes with a neat diagram showing you precisely where to drill the 2 needed holes.

The power is clean and quiet. All outputs are isolated and 2 of them are switchable to 12 volts. 2 outlets rated at 100 mA and 2 at 250mA is more than enough for most applications.

It comes with most common cable formats including a cable that lets you split one of the outputs to 2 pedals.
It looks amazing and it would survive the thoughest of conditions. It is heavy and solid.

It is made in Europe and you can even feed it 110 Volts instead of 230 should you travel with the unit.

Another thing I love about this is that the power cable is detachable so the unit will never be compromised should you mess up your power chord.

An added bonus is you can expand this or any other unit from Cioks Link line.

I can't say a bad thing about it! For the great build quality, reliability and being the only power supply that fits these types of pedaboards (besides battery powered supplies), the price is great!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Perfect size, perfect everything
skudra, 08.08.2017
I bought this power supply for my Pedaltrain Nano+, because I don't use a lot of pedals as a bass player but anyway the hassle with the different voltage adapters and cables can get a little bit annoying, specially if you're travelling and rehearsing in different places a lot.
I was very happy that a split cable for two pedals was included, because I use one input for my drive and the other for fuzz pedal.
Also it is very tough and solid but not that heavy witch is perfect for carrying your pedal board around.
Overall very good power supply for smaller pedal boards. Recomend it!!!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Reliable and space efficient
aikopt, 12.01.2021
I have been using this power supply for more than 5 years now without any issues.

Setup:
It is powering an MXR Reverb (250mA) and a TC Ditto X2 (100mA) on 2 separate outputs (digital pedals should always have their own isolated outputs) and 5 analog pedals from the other 2 outlets with a split cable and a 3 way daisy chain. I have not noticed any hum or disturbing noises over the past years, so all good.

Mounting:
The main reason I chose the Adam back then, was that it was the only power supply slim enough to fit under a Pedaltrain Metro. As I did not want to drill into my board, I used zip ties to hold it in place, which actually worked quite well and it sits solidly under the board.

Pros:
- small
- reliable

Cons:
- only 4 outputs, that I am starting to feel now, as I wish to expand my pedalboard
- max output is 250mA / 9V on one output, which is not enough for some digital pedals, like the BeatBuddy Mini I have

Conclusion
All in all a great power supply for smaller pedal collections and flat boards. You can even get away with daisy chaining multiple analog pedals on one outlet.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Amazing little thing.
LordBidlington, 27.05.2014
READ BEFORE YOU BUY THIS

I bought this to fit under my Pedaltrain Mini (pre 2012), and it didn't fit. Turns out it will only fit under the revised version. Bear this is in mind.

But after buying a new PT Mini I can say that this thing is perfect. It just oozes quality. No noise, no fuss, just a brilliant piece of kit.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
