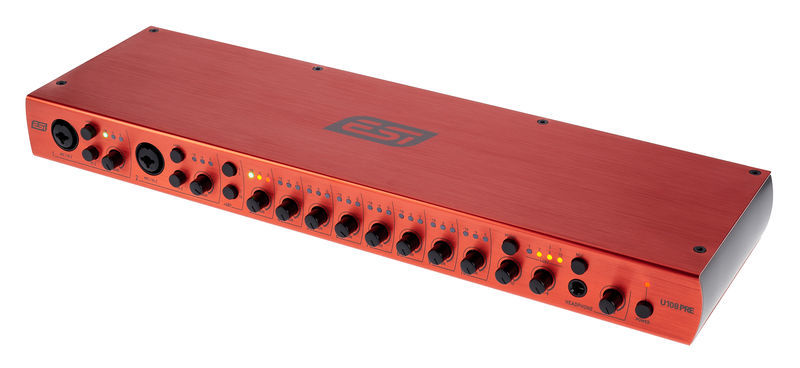

ESI U108 PRE

USB 2.0 Audio Interface

  • 24-Bit / 96 kHz resolution
  • 10 Microphone preamps with +48 V phantom power: XLR
  • 2 Hi-Z instrument inputs: 6.3 mm jack
  • 8 Balanced line outputs: 6.3 mm TRS
  • Stereo monitor outputs: 2x 6.3 mm jack
  • Headphone output: 6.3 mm jack
  • Dynamic range A/D converter: 107 dB (A)
  • Dynamic range D/A converter: 112 dB (A)
  • Supports Windows 7, Windows 8/8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
  • Supports Mac OS X (10.7 and higher)
  • Dimensions: 450 x 145 x 45 mm
  • Includes Bitwig 8-Track digital audio workstation license, Stanton Deckadance LE V2, inTone 2 ESI edition and external power supply

Further Information

Number of Mic Inputs 10
Number of Line Inputs 0
Number of Instrument Inputs 2
Number of Line Outs 10
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 450 mm
Depth in mm 145 mm
Height in mm 45 mm
2 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Unschlagbar
CrazyApple, 23.03.2020
Ich bin sehr überzeugt von diesem Interface. Für die Funktionen die es bietet ist der Preis Unschlagbar.
Allerdings gab es bei mir Abzüge bei Features da es bei mir Schwierigkeiten gibt da es mit ProTools nicht kompatibel sei (bei mir zumindest). In Kombination mit Cubase und Ableton funktioniert es sehr gut.

Ein weiterer mängel für Features geben die mitgelieferten Keys für DAWs und co., denn keines dieser Programme unterstützt mehr als 8 Eingänge. Dies ist schade, weil wenn ich mir ein gerät mit 10 Eingängen kaufe möchte ich diese auch nutzen. Jedoch angesichts dessen das es selbstverständlich ist, dass der Hersteller Software mit bei legt kann man da ein Auge zu drücken.
Ich finde der Sound kommt nah an den der Focusrite Geräte ran.
Ich nutze es für Drum Recording und bin sehr zufrieden. Perfekt für ein kleines Homestudio bzw. für einen Proben Mitschnitt.

Ich kann es jedem ans Herz legen der auf low Budget, z.Bsp. ein drum set aufnehmen möchte.
