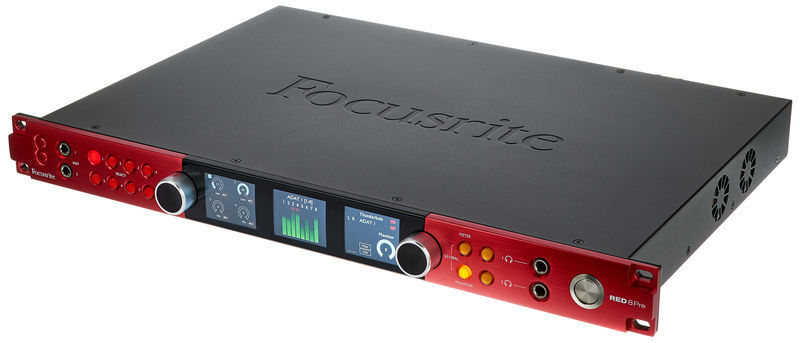

Focusrite Red 8 Pre

64 x 64 Thunderbolt 2 Audio Interface
- Pro Tools HD connections
- Dante audio network connections
- 24 bit / 192 kHz
- 8 AD-Converter: 8 "Evolution" Mic-Preamp remote control (balanced XLR)
- 2 Hi-Z inputs: unbalanced jack
- 8 Line inputs: balanced sub-D
- 2 Monitor outputs: balanced jack
- 16 Line outputs: balanced sub-D
- 2 Stereo headphones outputs
- 2x ADAT I / O
- S / PDIF coax
- Word Clock I / O
- 32x Dante I / O
- 2 Thunderbolt connections
- Dual-Digilink for ProTools HD
- System requirements: Apple Mac with Thunderbolt connector and Mac OSX 10.9, 10.10, 10.11, Sierra
- Dimensions: 19 "x 1 U x 340 mm
Further Information
Recording / Playback Channels | 64x64 |
---|---|
Number of Mic Inputs | 8 |
Number of Line Inputs | 16 |
Number of Instrument Inputs | 2 |
Number of Line Outputs | 18 |
Headphone Outs | 2 |
Phantom Power | Yes |
Number of S/PDIF Connectors | 1 |
Number of ADAT Connectors | 2 |
AES/EBU Connectors | 0 |
Number of MADI Connectors | 0 |
Ethernet | 2 |
Other Connectors | 2xHDX Port |
MIDI Connectors | No |
Word Clock | 1xIn, 1xOut |
Max. Samplerate | 192 kHz |
Max. Resolution in Bit | 24 bit |
Bus-Powered | No |
Incl. Power Supply | Yes |
Windows Thunderbolt driver | No |
Thunderbolt Version | 2 |
Width in mm | 483 mm |
Depth in mm | 340 mm |
Height in mm | 44 mm |
