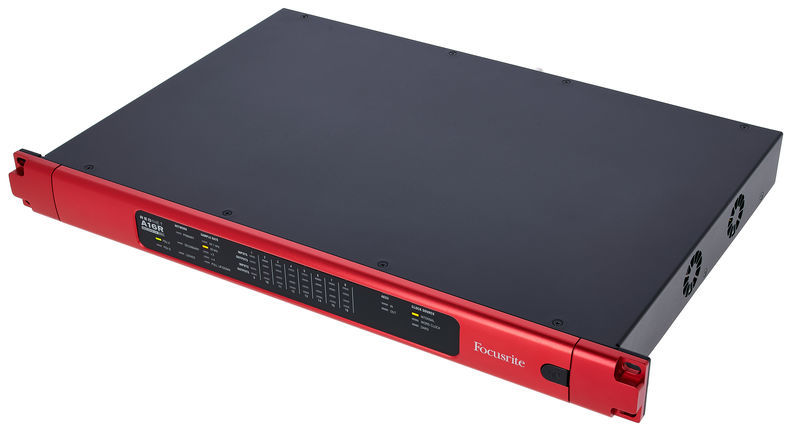

Focusrite RedNet A16R MKII

16-Channel AD / DA converter with Dante interface

  • 24 Bit / 192 kHz
  • 119 dB dynamic range
  • Frequency range: 20 - 20,000 Hz (+/- 0.05 dB)
  • Dante based remote controllable Audio-over-IP functionality
  • 2 Integrated power supply units for redundant power supply
  • 2 Network connections for redundant network functionality
  • Level control for input and output channels
  • Design: 19"/ 1 U
  • Dimensions: 482 x 44 x 327 mm
  • Weight: 4.53 kg


  • 4 DB-25 Sub-D connections (16x line input, 16x line output)
  • Word clock input and output
  • AES / EBU input and output
  • 2 Dante network connections
  • 2 Connections for power cables

Further Information

Amount Of Channels 16
AD Conversion Yes
DA Conversion Yes
Max. Resolution 24 bit
Max. sampling rate 192 kHz
S/PDIF Connecor No
AES/EBU Connector Yes
Word clock Yes
Number of analog inputs 16
Number of Analog Outputs 16
Headphone connection No
