Harley Benton PowerPlant ISO-3AC SAG Modular

Start 360°

Please activate your javascript. You’re currently missing out on our lovely designed product gallery and its useful features (zoom into the very last pixel of each picture, 360 view, videos and more). We wouldn’t miss them for the world.

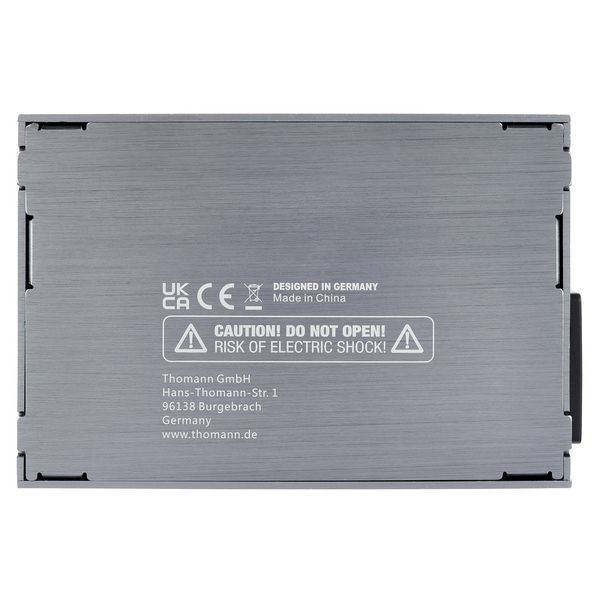

Harley Benton PowerPlant ISO-3AC SAG Modular; multiple modular power supply with SAG option for lowering the voltage slightly in fuzz- and distortion circuit effects; 4 isolated, filtered & short-circuit-protected outputs eliminate noise & hum; high-current capable for modern digital and analog effects; LED monitoring on each output; AC switching 100-240V universal input voltage operation; connections: output 1-2 SAG 4-9V DC @ max. 500 mA (isolated individually), output 3-4 SAG 6-18V DC @ max. 500 mA (isolated individually); output 5 LINK 12V DC @ 1A, for powering additional DC input PSU's; center negative; modular AC main output allows two or more units to be connected by Kettle female to male connector (included); the total output load must not exceed 21,6W; compact sturdy aluminum housing can be used on or underneath pedalboards; included cables: 5x DC 60 cm 5.5x2.1mm straight to right angle, 1x AC power cord EU plug 1,2m, 1x kettle female to male connector; dimensions: (w x d x h) 130 x 88 x 35 mm; weight: 400g

30 30-Day Money-Back Guarantee

3 3-Year Thomann Warranty

available since March 2022

Item number 523016

sales unit 1 piece(s)

DC/AC current DC

9 V Yes

12 V Yes

18 V Yes

Secondary voltage No

Multi-output power supply Yes

$62

The shipping costs are calculated on the checkout page.

Sales Rank

in Guitar Effect Power Supplies

21 Customer ratings

5 17 Customers 4 3 Customers 3 1 Customer 2 0 Customers 1 0 Customers

4.8 / 5

quality

Review guidelines

17 Reviews

Substitutes up to 5 separate power supplies

Bob4u 23.04.2023

In my guitar's rack effectively reduced the amount of power supplies due to 4 adjustable outputs (2x 4-9V 2x 6-18) and 1 fixed at 12V.
First two outputs can be used for 5V devices or 9V devices, all 4 outputs can be adjusted for 9V devices. Last two can be used for 9V 12V 15V 18V devices.
So there's plenty of flexibility.
I suggest to check the voltage with a voltmeter to be sure of the exact voltage.

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Amazing amount of power and flexibility

Peteus 22.02.2023

This powers my kemper rack. So kemper, wireless, eventide h9, midi pedal, midi combiner and midi pedal via phantom. Amazing to fit that in a tiny space. My whole rig is only a 4U rack!

Report

12v at 500ma

Alex4402 27.03.2022

Only brick that does 12v at half an amp, so if you’re using a mini vent II you’ll be after one of these. Survived one gig. So far so good 👍🏻

Report

Pure quality

echokrisz 12.03.2023

Nicely built unit with great quality dc jacks. Works wihout issues powering more digital stuff (dd-200, md-200) along with noise sensitive vintage fuzzes. (total 8-10 effects) Highly remommended!

Report

Read all reviews
