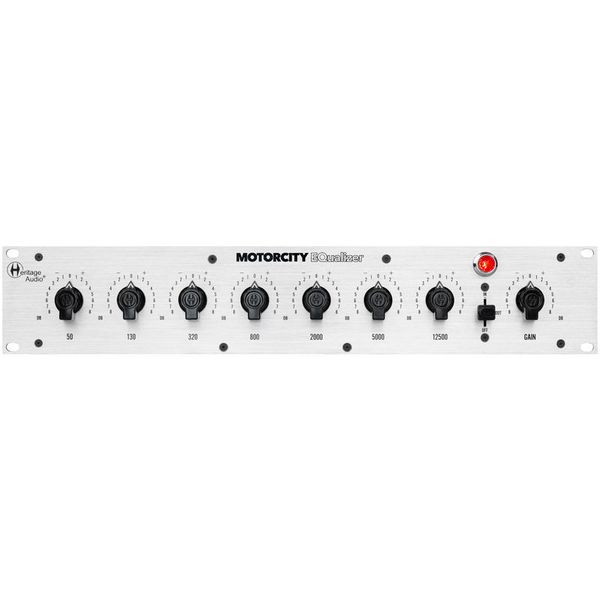

Heritage Audio Motorcity EQalizer

Heritage Audio Motorcity EQalizer; passive 1-channel analog equalizer; replica of the "MOTORCITY EQualizer"; historically accurate knob layout with custom molded Bakelite knobs; identical equalizer circuitry (including custom 1960s capacitors and inductors); 7 frequency bands across the sound spectrum from 50 Hz, 130 Hz, 320 Hz and 800 Hz to 2 kHz, 5 kHz, and 12.5 kHz with stepped rotary switches to boost or cut 8 dB in 1 dB steps; bypass switch; on/off switch; UTC replica input transformers with optimized transfer ratio; output amplifier with Carnhill transformer; connectors: 1x line input XLR, 1x line output XLR; external power supply: 100 - 240 VAC, 50/60 Hz, 0. 6A, 48V DC, 520 mA, max. 25W; Design: 19" 2U; Weight: 4.7 kg

Channels 1
Frequency Bands 7
Tube(s) No
Height units 2 U
Connectors XLR
available since December 2021
Item number 526898
sales unit 1 piece(s)
$1,899
The shipping costs are calculated on the checkout page.
In stock
In stock

This item is in stock and can be dispatched immediately.
