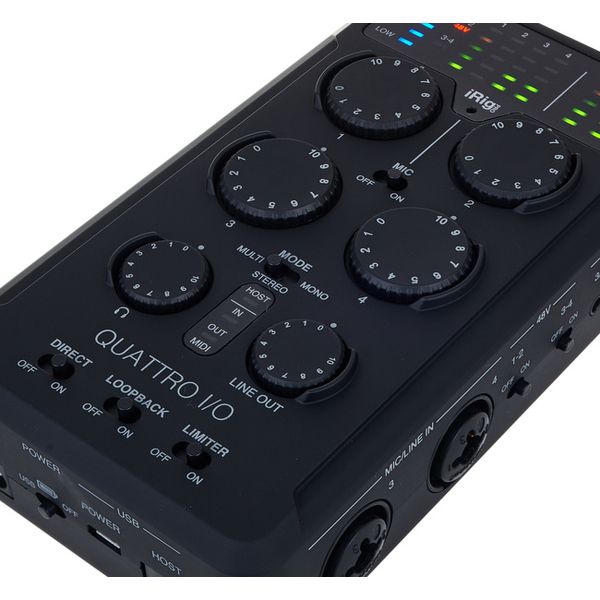

IK Multimedia iRig Pro Quattro I/O
Start 360°
4 In / 2 Out USB Audio/Midi Interface
- Conversion: 24-bit/96 kHz
- 4 Ultra-low-noise microphone preamps with 48 V Phantom powering
- Standalone mode
- Built-in limiter for input 1-2 to protect against clipping
- Safety channel with -12dB level reduction
- Internal multitrack, stereo or mono mixdown
- 2 Combo mic/hi-Z instrument inputs
- 2 Combo mic preamps / Balanced line inputs
- Stereo RCA and 3.5 mm line inputs
- 2 XLR and 3.5 mm line outputs
- Built-in MEMS microphone
- MIDI input and output
- Powered by connected unit, external power supply (not included in the delivery) or 2 AA batteries
- Charging function for connected unit
- System requirements: MAC (OS 10.6 or higher), PC (XP, Vista, Windows 7,8,10)
- Compatible with most iOS devices from iOS 6 and higher, android compatible (Android 5 and higher, for devices with USB digital audio Support)
- Dimensions: 166 x 92 x 43 mm
- Weight: 0.33 kg
- Includes Lightning, USB-C and USB-A cable, adapter from 2.5 mm jack to MIDI jack and 4 AA batteries
available since
May 2022
Item number
543328
sales unit
1 piece(s)
Recording / Playback Channels
4x2
Number of Mic Inputs
4
Number of Line Inputs
2
Number of Instrument Inputs
2
Number of Line Outs
2
Headphone Outs
1
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
Lightning
MIDI interface
Yes
Word Clock
0
Max. sample rate (kHz)
96 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Connection Format
Mini DIN-USB Type A, Mini DIN-USB Type C, Mini DIN-Lightning
Included in delivery
incl. Lightning- , USB-C and USB-A cable, 2,5 mm Jack to MIDI Adaptor, 4x AA Batteries
Zero latency monitoring
1
