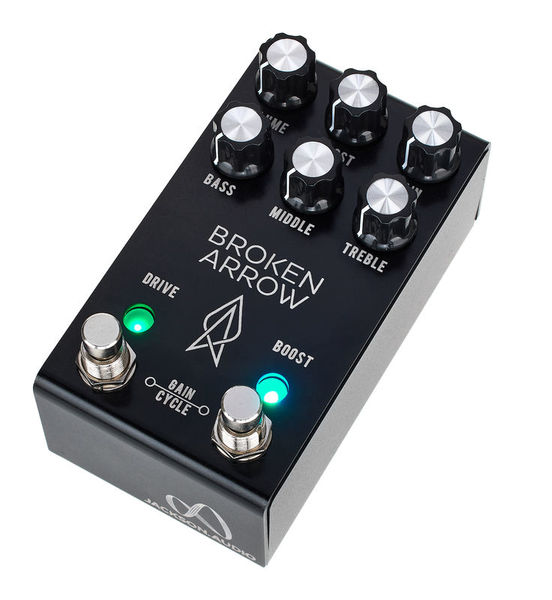

Jackson Audio Broken Arrow V2 - MIDI BK
Effects Pedal for Electric Guitar and Electric Bass
- Overdrive pedal that offers guitarists a full range of overdriven sounds
- Soft clipping overdrive circuit with 4 different types of clipping options
- With GAIN CYCLE gain adjustment
- Active 3-band EQ
- MOSFET boost circuit
- MIDI control
- Controls: Volume, boost, gain, bass, middle, treble
- LED: Drive, boost
- Foot pedal: Drive, boost
- Input / output: 6.3 mm Jack
- MIDI connection: 6.3 mm Jack
- Power supply connection: AC adapter, 5.5 x 2.1 mm, negative polarity inside
- Current consumption: 150 mA
- Powered via 9 V DC power supply (not included -- suitable power supply available under Article Nr. 409939)
- True bypass
- Dimensions (W x D X H): 68 x 123 x 69 mm
- Weight: 320 g
- Handmade in the USA
Note: Battery operation is not supported.
