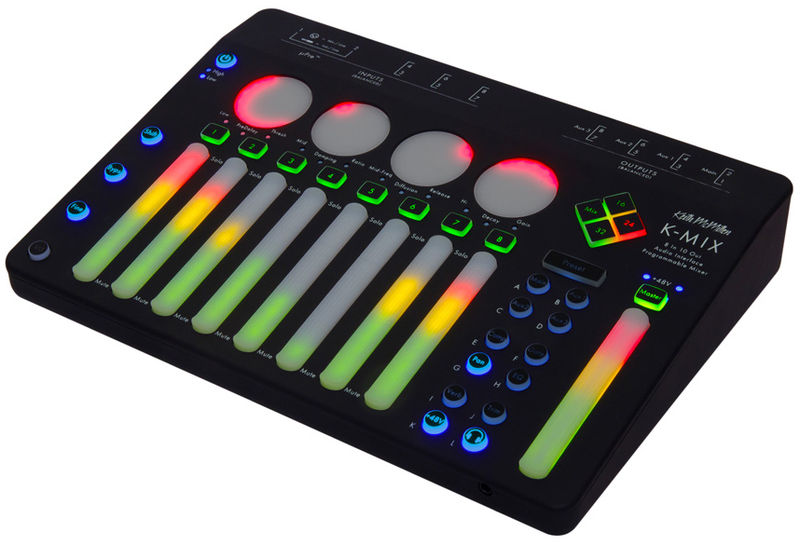

Keith McMillen K-Mix

Audio Interface & Programmable OSX Mix Controller

  • Stand alone operation
  • 24bit AKM converter
  • 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
  • 8 Balanced inputs (2x XLR / jack combi socket, 6x jack 6.35 mm) +28 dBu
  • 8 balanced outputs (1/4 "jack)
  • 48 Volt phantom power
  • 2 unbalanced outputs
  • 2 Ultra low-noise Pre preamplifier
  • 8 Touch fader
  • Master Touch fader with 24 LEDs
  • 4 Touch knobs with 16 LEDs each
  • 9 Channel Select buttons
  • 4 Bank Select buttons
  • 17 Function keys
  • Compressor / Limiter
  • Noise Gate per channel
  • 3-band semi-parametric EQ per channel +/- 18 dB cut / boost
  • Master Reverb
  • 4 Surround Panner
  • 5.1 and 7.1 surround
  • 1 Micro USB (Audio I / O, MIDI I / O, Power)
  • 1 mini USB (MIDI I / O via KMI Expander. Power)
  • System requirements: Mac OSX 10.7 and later, Windows 7, 8 or 10 (only 64 bit)
  • Dimensions: 235 x 167.5 x 40 mm
  • Weight: 709 g

Further Information

Recording / Playback Channels 8x8
Number of Mic Inputs 2
Number of Line Inputs 8
Number of Instrument Inputs 0
Number of Line Outs 8
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 235 mm
Depth in mm 167 mm
Height in mm 40 mm
8 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • handling
  • features
  • sound
  • quality
Total
quality
features
handling
sound
Best three to one audio interface out there!
Chryschristo, 06.06.2020
I use it with ableton's live and for live stage performances.
Its a mixer, an audio interface and a midi controller at the same time!!
You can select and change between the three of them at any time.
Very easy to use and the built quality is very good.
Also it is light weighted( Very very important for me! cause i have to bring a lot of staff in a live stage).
8 Ins, 8 Outs + a sub stereo channel!-- This is all i need for my performances.
For the money: it may seen a bit expensive but it is absolutely worth it!
The sound is solid without being "chromatized"...
Cons:
1.The touch surfaces may sometimes need an extra focus by you, because they have their own way of usage...
2. You have to take a care of it while you are setting up because it is very light weighted and the cables that you maybe using can be heavier than the Keith McMillen K-Mix.
3. Built in effects could have been a bit better but they are ok..

Though...
Absolutely recommended!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Can not imagine me living without it!
Bobodrone, 24.01.2021
This sound card
mixer
midi controller is all I need in one box when performing on stage! Before I bought this wonderful rock solid device I had to bring a mixing deck, a midi controller and a 8ch sound device and all sorts of cables to connect them in between.

I mix my live electronic Hurdy-gurdy in real time with the 8 channel per-recorded-, and live sampled (from the instrument) sounds and I can control as well the mix of the output sound into the 8 different speakers as well as use the faders and rotary touch knobs to control the sound processing in my attached laptop software. It is easy to use, sound really great and it fits easily in my backpack together with my laptop and cotton/rosin for my 'gurdy!

Thank you Keith!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
Compact and great
Human, 04.05.2017
I love the compact tough design and the back position of the plugs. Touch are responsive but when you need to make quick changes parameters are not exactly where you want them to be, can not make fine adjustments like on knobs. Auxiliary routing are a great options to asign external efects to different channels without messing with the cables. The only flav was that compared with NIK audio 6 the headphone volume is 20% lower and you need to turn it up to max. And overall the sount is flatten and a little bit metalic, I prefered much more the sound of NIK Audio 6. Since I installed windows 10 are some problems with the sound, k-mix freezes sometimes and no sound is coming out, I need to turn off/on to recover, I think it`s an usb problem in win 10, but in win 8 works fine.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
features
handling
sound
small and multifunctional
caglar, 01.10.2016
this is a great piece of equipment. very small and functional as a standalone mixer. pads are not feeling cheap at all. takes some effort to get to know all the functions. u need to study the thing for a while of course. but still, u can feel it is more intuitive than most of other digital mixers. the jacks feel a little hard to press in though.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
