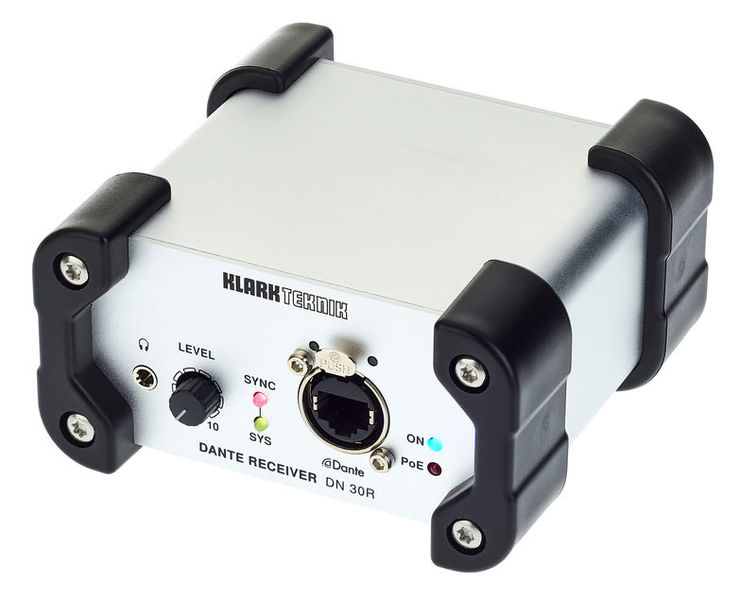

Klark Teknik DN 30R

2-Channel Dante receiver

  • For connecting active loudspeakers, amps or mixers
  • Automatically connects to most configured Dante transmitters
  • 96-kHz D/A conversion
  • Large headroom
  • Neutrik XLR connectors
  • Power supply via Power over Ethernet (PoE) or via a power supply unit (24 V DC, 300 mA, center positive)
  • Ethernet connection: 1x RJ45
  • Analog audio outputs: 2x XLR male and 1x 3.5 mm mini-jack (headphones) stereo, 20 Ohm (unbalanced)
  • Maximum output level: +22 dBu
  • Frequency response: 20 - 20000 Hz (±0.1 dB)
  • Signal-to-noise ratio: 98 dB
  • Sample rate: 44.1, 48, 88.2, 96 kHz
  • Aluminium casing
  • Protective rubber corners
  • Dimensions without rubber corners (H x W x D): 54 x 108 x 103 mm
  • Dimensions with rubber corners (H x W x D): 63 x 118 x 112 mm
  • Weight: 0.7 kg
  • Includes floor and wall brackets

Further Information

Amount Of Channels 2
AD Conversion No
DA Conversion Yes
Max. sampling rate 96 kHz
S/PDIF Connecor No
AES/EBU Connector No
ADAT No
Word clock No
Number of analog inputs 0
Number of Analog Outputs 2
Headphone connection Yes
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
1 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
nl Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
sound
Werkt uitsluitend met een DHCP server
Dante freak, 20.04.2021
Op de DN30R kun je verder niets instellen of configureren. Ook met Dante Configurator kun je niets aanpassen aan de netwerk config.
Een (zeer afwijkend) IP adres wordt standaard toegewezen. Uitsluitend met een DHCP server kun je een gewenst IP adres toewijzen (op basis van MAC adres).

Pluspunten:
Compact, kan zowel los staand als met montage beugels geplaatst worden.
De mogelijkheid voor het gebruiken van POE, in plaats van de externe voeding, werkt ook prima.
Eenmaal werkend; doet wat je er van mag verwachten.

Minpunten:
Bevat geen 2e Dante port voor failover.
Werkt uitsluitend met een DHCP server.
Geen handleiding, enkel een product omschrijving.
