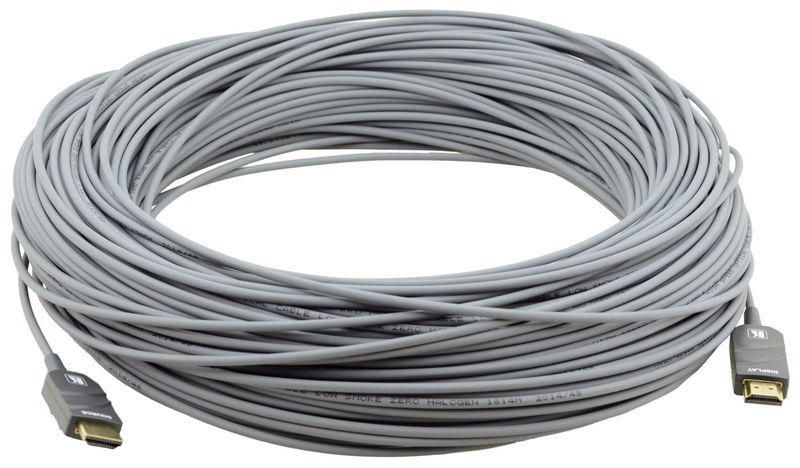

Kramer CLS-AOCH-66 Cable 20m

Active Optical HDMI Cable

  • Length: 20 m
  • For long cable runs of up to 100 meters without the need for an external power supply or additional extenders
  • Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30 Hz (4:4:4), 8 bit, Full HD, 3D Deep Colour
  • Max. data rate: 10.2 GBit/s
  • Supported colour spaces: RGB, YCbCr, xvYCC, Adobe sRGB and sYCC601
  • Embedded audio: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio and SA-CD
  • HDMI Compliant: HDCP 2.2, EDID, CEC
  • Connectors: 24ct gold-plated HDMI connector type A
  • Cable structure: Hybrid fibre optic cable
  • LWL: Multi-mode fibre optic
  • Conductor: 6x 28AWG (7/0,127 mm)
  • Outer sheath: LSHF (low-smoke halogen-free)
  • Outer sheath colour: Grey
  • Outer diameter: 3.4 mm
  • Smallest bending radius: 6 mm
  • Connector tensile strength: 10 kg
  • Max. compressive strength: 500 N
  • Operating temperature: 0 to +50 °C
  • LSHF conformity: IEC 60332-1, IEC 60754-1, IEC 61034-2, ROHS: 2011/65/EU

Further Information

From Plug HDMI male
To Plug HDMI male
Length (in m) 20 m
Cable Color Grey
Active Cable Yes
Length (in m): 20 m
Kramer CLS-AOCH-66 Cable 20m
Kramer CLS-AOCH-66 Cable 20m

Active Optical HDMI Cable Length: 20 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 20 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-98 Cable 30m
Kramer CLS-AOCH-98 Cable 30m

Active Optical HDMI Cable Length: 30 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 30 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-164 Cable 50m
Kramer CLS-AOCH-164 Cable 50m

Active Optical HDMI Cable Length: 50 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 50 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-50 Cable 15.2m
Kramer CLS-AOCH-50 Cable 15.2m

Active Optical HDMI Cable Length: 15.2 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 15,2 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-328 Cable 100m
Kramer CLS-AOCH-328 Cable 100m

Active Optical HDMI Cable Length: 100 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 100 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-33 Cable 10m
Kramer CLS-AOCH-33 Cable 10m

Active Optical HDMI Cable Length: 10 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 10 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-197 Cable 60m
Kramer CLS-AOCH-197 Cable 60m

Active Optical HDMI Cable Length: 60 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 60 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-131 Cable 40m
Kramer CLS-AOCH-131 Cable 40m

Active Optical HDMI Cable Length: 40 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 40 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-230 Cable 70m
Kramer CLS-AOCH-230 Cable 70m

Active Optical HDMI Cable Length: 70 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 70 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-295 Cable 90m
Kramer CLS-AOCH-295 Cable 90m

Active Optical HDMI Cable Length: 90 m, For long cable runs up to 100 metres without the need for an external power supply or additional extenders, Max. resolution: 4K @60 Hz (4:2:0), 4K @30 Hz...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 90 m
  • Cable Color: Grey
  • Active Cable: Yes
Kramer CLS-AOCH-262 Cable 80m
Kramer CLS-AOCH-262 Cable 80m

Active Optical HDMI Cable Length: 80 m, For long cable runs of up to 100 meters without the need for an external power supply or additional extenders, Max. Resolution: 4K @ 60 Hz (4:2:0), 4K @ 30...

  • From Plug: HDMI male
  • To Plug: HDMI male
  • Length (in m): 80 m
  • Cable Color: Grey
  • Active Cable: Yes
$373 €318.10
The shipping costs are calculated on the checkout page.

The price in USD is a guideline price only!

Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
