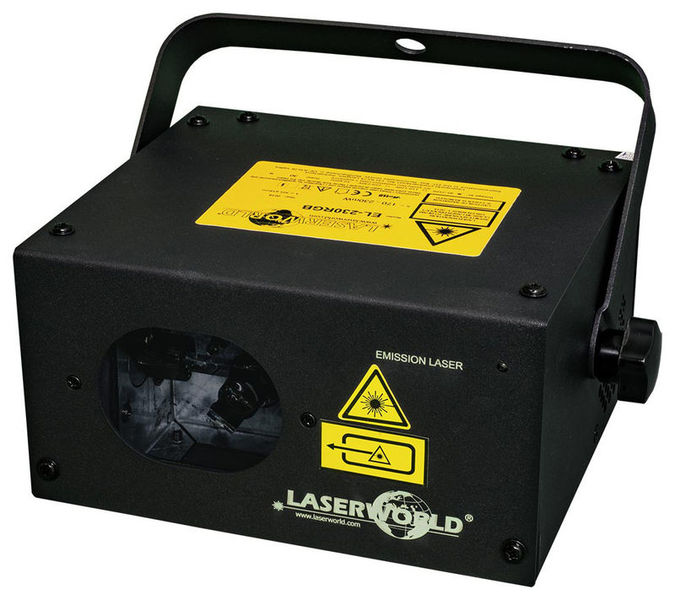

Laserworld EL-230RGB

RGB Laser

  • Total output of up to 230 mW
  • Typical overall output: 230 mW
  • Guaranteed power: 170 mW
  • Power red: 100 mW / 650 nm
  • Power green: 20 mW / 532 nm
  • Power blue: 50 mW / 445 nm
  • Beam parameters approx. 4 mm / 1 mrad
  • Laser sources: Diode
  • DPSS laser
  • Laser class: 3b
  • Operating modes: Stand-alone, Music mode, DMX,
  • Scanner: High-speed stepper motors 2-5 kpps
  • Scan angle max.: 30°
  • Basic patterns: Approx. 50 (layers, tunnels, fences, waves, etc.)
  • Accessories: Power cable, manual, interlock, key
  • Power supply: 85V - 250V AC
  • Power consumption: 15 W
  • Dimensions (W x D x H): 188 x 165 x 106 mm
  • Weight: 2.6 kg

Caution:This device contains a laser from the class group 3R (in accordance with the classification DIN EN 60825-1: 2007)

Further Information

Colors RGB
Laser Classification 3b
Animations-Laser Yes
Grating-Laser No
ILDA No
DMX Yes
output 101 to 300
Analogue Modulation No

These are other customers' choices:

Customers who looked at this item have bought these:

Laserworld EL-230RGB
57% bought this exact product
Laserworld EL-230RGB
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$108 Add to Basket
Laserworld EL-400RGB
9% bought Laserworld EL-400RGB $187
Eurolite LED Multi FX Laser Bar
6% bought Eurolite LED Multi FX Laser Bar $183
Cameo WOOKIE 200 RGY Animation Laser
6% bought Cameo WOOKIE 200 RGY Animation Laser $125
Laserworld CS 1000RGB
4% bought Laserworld CS 1000RGB $449
Our most popular Lasers
98 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.3 /5
  • noise level
  • features
  • light output
  • quality
Total
noise level
features
light output
quality
For the price item is excelent
gktzl, 02.11.2020
item is very good for its price.
it is very bright and powerful!
some of the effects are excelent but some other are not so good
i thought that this item supported individual color control but it is not. This is not a problem.
i used the item for many times so far and it is nice and of course reliable!
stepper motors are a little bit noisy and after a lot of time you get tired of its noise.
one thing that i noticed is that the laser mirrors have no limit switch and the deviece to calibrate them and you hear a very strong noise when you power it up.
I wish i could change R G B colors from DMX to make custom colors but it is not possible.
anyway, The item is fine and i suggest it for many events because it worth the money!
I am not pretty sure how safe is the laser for naked eye at 5 meters away. I thing that it has not protection filter layer but i dont know.
using the item so far realised that it worth and you can do a lot of things usind dmx usb adapter and freestyle software
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
noise level
features
light output
quality
Good laser for beginners
Alexzen, 04.09.2020
Powerful for medium sized rooms, not very noisy, bright colors. It is a pity that it only works with its own programs and cannot be programmed from Touch Designer (I could not do this). But in general, for such a price, he should not be able to do this.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
noise level
features
light output
quality
Amazing for the price
NBIRELAND, 04.07.2019
Laser is unbelievable for the price. The built in shows work well. Haven't used it in any large setting but works well in small-medium sized rooms. It is very noisy though, this is usually drowned out by loud speaker systems.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
noise level
features
light output
quality
Laser 112, 26.09.2017
I use as a mobile Dj
Colors look good, but without the DMX connectivity options are not great.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
