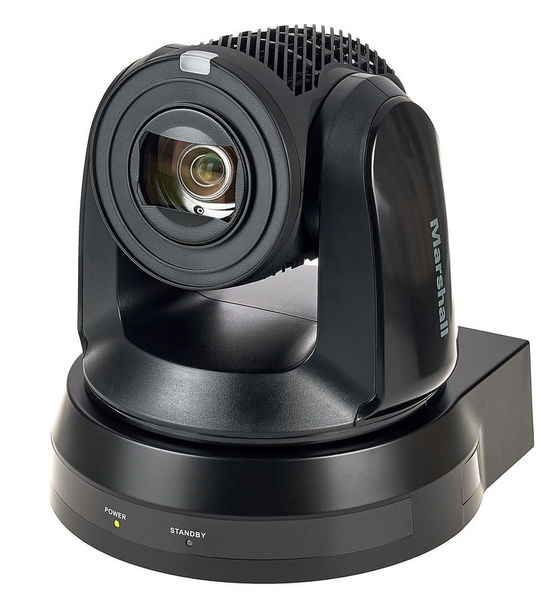

Marshall Electronics CV630-IP UHD PTZ Camera

2

4K PTZ camera

  • With 30x optical zoom and 3G-SDI, HDMI and IP outputs
  • Sensor: 8 MP 1/2.5" UHD CMOS sensor
  • Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)
  • Resolution UHD 3840 x 2160p (25 / 29.97 fps) via HDMI and IP
  • Resolution HD: 1920 x 1080p (59.94 / 50 / 25 / 29.97 fps) via 3G-SDI, HDMI and IP
  • Resolution SD: 1280 x 720p (59.97 / 50 / 29.97 / 25 fps) via 3G-SDI, HDMI and IP
  • Video outputs: 3G-SDI, HDMI and IP stream
  • Focal length: 4.6 - 135 mm (30x optical zoom)
  • Angle of view: 68° - 2.3°
  • 340° Horizontal pan / 120° vertical tilt
  • Dynamic speed adjustable between 5° and 300° per second via menu
  • Supports RS232 / RS422 / "VISCA over IP" interface
  • Compatible with joystick controller VS-PTC-IP (Art.508482) and VS-PTC-200 (Art.506555)
  • Dimensions (W x H x D): 175 x 190 x 185 mm
  • Weight: 1.9 kg
  • Colour: Black
  • Incldues ceiling bracket and remote control
available since March 2021
Item number 515799
sales unit 1 piece(s)
Design PTZ Camera
Streaming resolution 4k
Stationary Yes
Mobile No
Pan–tilt–zoom Yes
USB Webcam No
SDI Out Yes
HDMI Out Yes
HD-Base T No
Battery Not possible
Microphone No
Tally Yes
Remote controllable Yes
Audio In Yes
Integrated Display No
Integrated recording No
Case color Black
Integrated light No
Monitor bracket No
Optical Zoom Yes
Waterproof No
Network capable Yes
Talkback No
Auto Focus Yes
$2,199
