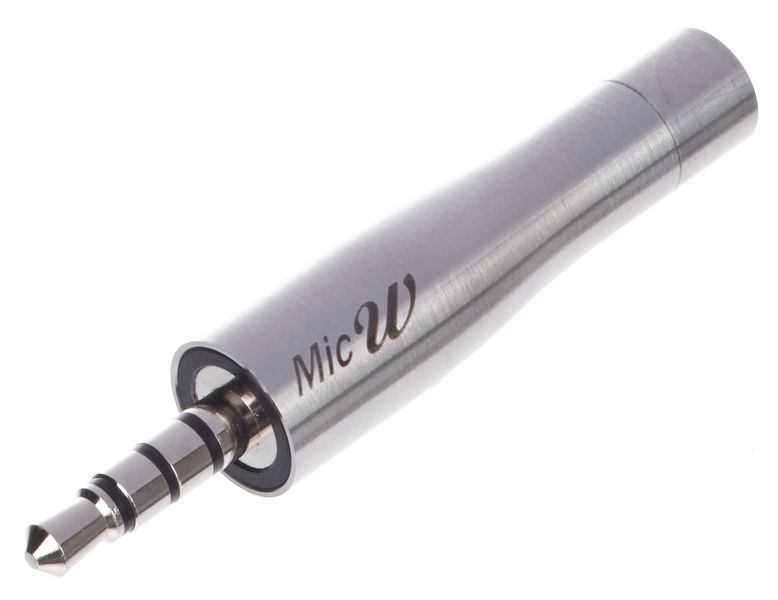

micW i436

Miniature clip-on microphone

  • For Apple iPhone/iPad/iPod
  • Calibrated measurement microphone certified IEC 61672 class 2
  • For measuring acoustics (frequencies, levels)
  • Can be used as an external microphone with compatible apps (not included)
  • Suitable for the jack input of corresponding mobile devices (current iPhone 3GS or newer, iPad 1/2 and iPod Touch - see manufacturer specifications)
  • Polar pattern: Omnidirectional
  • Capsule diameter: 7 mm
  • Frequency range: 20 - 20,000 Hz
  • Max. SPL: 130 dB
  • Sensitivity +/- 3 dB : -44 dB (6.3 mV/Pa)
  • Signal-to-noise ratio: 62 dB (Ref. 1Pa A-weighted)
  • Noise level: 32 dB (IEC 268-4 A-weighted)
  • Output impedance: < 2200 Ohm
  • Power supply: Plug & Play
  • Connector: 4-Pin mini jack
  • Dimensions (diameter x length): 9 x 36 mm (without connector)
  • Weight: 8 g
  • Colour: Metallic
43 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.4 /5
  • features
  • sound
  • quality
Total
features
sound
quality
I'm not sure about the purpose of this product
12.03.2015
This seemed like a fantastic product when I bought it, to do simple dB and RTA-measurements from my ipad/iphone.
However, the maximum SPL you can get into an Ipad is not a lot, mine peaks at around 108dB which makes measurements in loud environments a bit unreliable.
And since most calibrators work at around 110-114dB I haven't been able to calibrate it properly either.

I'm not sure if this is a limitation in the microphone or the ipad, but my guess is that the ipad can't handle any greater input voltage through the microphone input. After all, it's designed for speech not SPL-measurments...

This is however NOT the products fault, it works fine but not very well for the application purpose.

But again, you get what you pay for :)
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
features
sound
quality
Great tool for checking out a room
StuartB, 29.05.2015
I use this, along with an app on my phone/tablet, to help set up my graphic EQs in theatres. It is very compact and which means it is small enough to always be in my laptop bag if I ever need it. It seems to give a very accurate reading on the rooms when I run some pink noise through the systems however the app I use has a built in compensation curve for this particular microphone. It's well built and come is a nice neat case.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
features
sound
quality
very good measurement microphone....
EdwinB, 15.08.2015
The micW i463 is an excellent portable measurement microphone which works well with ipad....it is ver easy and simple to use....It comes in a prlastic protective case....Due to its small size it can easily get lost.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
features
sound
quality
nice little measurement mic
burczybass, 16.10.2018
very good build quality. without failure for 5 years.
compact size
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
$101
The shipping costs are calculated on the checkout page.
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Share This Product
Your Contacts
Phone: +49-9546-9223-35
FAX: +49-9546-9223-24
Phone: +49-9546-9223-30
FAX: +49-9546-922328





test results:
