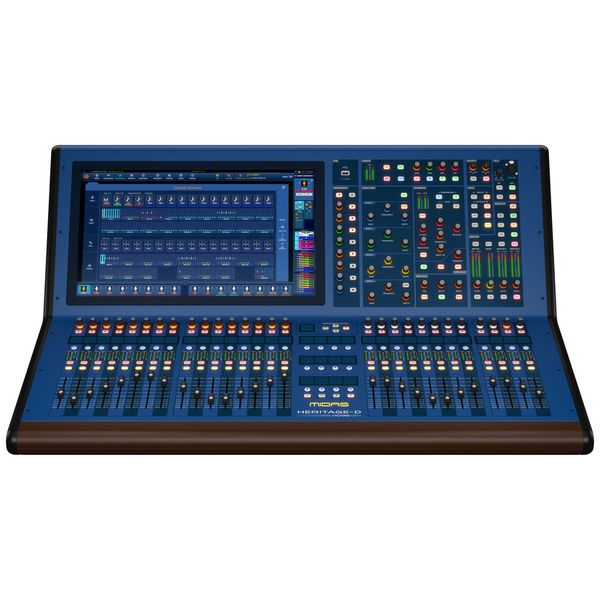

Midas Heritage HD96-24-TP

Live Digital Console Control Centre

  • Input channels: 144
  • Flexible mix busses: 120
  • Sample rate: 96 kHz
  • 21" Full HD Multi Touch Screen
  • 41 Full Colour LC Info Displays
  • 28 Motorised faders: 100 mm
  • Artificial Intelligence "Channel AI"
  • Dante, Madi and USB interface support
  • Weight: 24.0 kg
  • Matching stageboxes (not included in the delivery): DL 231, DL151, DL152, DL153, DL154, DL155, DL251
  • Includes touring case
available since December 2021
Item number 532701
sales unit 1 piece(s)
User Interface Physical/remote
Number of faders 28
DSP Input channels 144
Mic Preamp 8
Physical outputs 8
Digital stagebox connection AES50
Hotspot No
Multitrack Record Yes
integratated Player/Rec via USB/SD No
19" Rackmount No
DSP Output Channels 120
Busses 120
Mono-Line Input 8
Stereo-Line Input 0
Ethernet Ethernet
Soundcard interface No
Recorder Format No
Scribble Strips 1
FX Processor 96
Delay Input 1
Delay Output 1
Matrix 120
DCA/VCA Gruppen 24
Midi Connector No
Sample rate 96 kHz
Separate Personal Monitor system No
Expansion Card slots 2
Digital ADAT No
Digital SPDIF No
Digital AES3/ASESEB Yes
Digital MADI Yes
Digital Dante Yes
110V capable 1
Case Optional
Weight 43,2 kg
Show more
