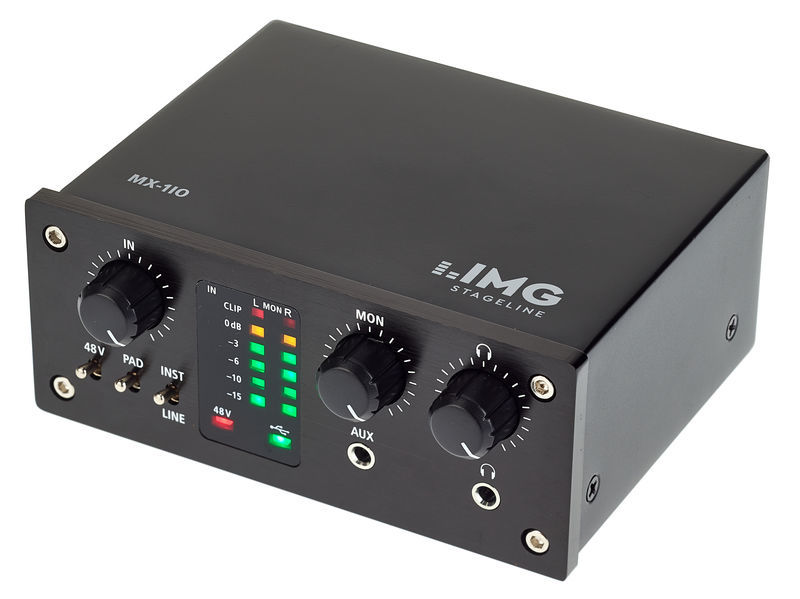

IMG Stageline MX-1IO

1-Channel USB Recording Interface

  • Integrated USB audio interface (is recognised and addressed as an external sound card)
  • Full-duplex USB port (simultaneous recording and playback possible) for playing digital audio data from the computer and for recording the mixing on the computer
  • 1 Mono input channels with XLR input (mic) and 6.3 mm jack input (switchable line / instrument)
  • Switchable 20 dB attenuation and LED level display
  • Switchable input channels mono / stereo
  • 1 Additional stereo input
  • 1x 6.3 mm Jack output L / R
  • 1 x 3.5 mm Stereo jack output
  • Adjustable headphone output
  • Phantom power: + 48 V, switchable per channel
  • Stereo LED level meter
  • Frequency range: 20-20000 Hz
  • THD = 0.03%
  • Crosstalk attenuation: 92 dB
  • Dimensions (W x H x D): 120 x 50 x 110 mm
  • Weight: 498 g

Further Information

Recording / Playback Channels 1x2
Number of Mic Inputs 1
Number of Line Inputs 3
Number of Instrument Inputs 1
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 48 kHz
Max. resolution in bit 24 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 120 mm
Depth in mm 110 mm
Height in mm 50 mm
5 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.4 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
Tut, was es soll ;)
DarianS, 10.06.2020
Habe mir das IMG Stageline MX-1IO zum Anschließen eines Kondensator-Mikrofons (Lewitt LCT 240 PRO) am Computer zugelegt. Der Aufbau war kinderleicht über den XLR-Anschluss und dem mitgelieferten USB-Kabel. Windows erkannte sowohl Eingang als auch Ausgang direkt als neue Geräte an, ohne zusätzliche Treiberinstallation.

Mein einziger Kritikpunkt wäre das Monitoring vom XLR-Eingang, welches sich nicht ausschalten lässt. Da ich offene Kopfhörer besitze ist die Funktion zwar etwas nervig, aber nach Gewöhnung verkraftbar.

Die Verarbeitung jedoch vollkommen gelungen, keine scharfen Kanten oder unfeine Ecken. Es sind sogar Gummifüße mitgeliefert, falls man das Gerät auf dem Tisch platzieren möchte.

Pro:
- Einfacher Aufbau
- vielzählige Anschlussmöglichkeiten für Eingang und Ausgang
- Kopfhörer und Lautsprecher separat regelbar
- Analoge Regelung von I/O
- Stromversorgung komplett über USB

Contra:
- Monitoring vom XLR-Eingang nicht ausschaltbar
- Gerät bleibt bei ausgeschaltetem Computer aktiv

Insgesamt bin ich zufrieden und kann das Interface für diesen Einsatz wärmstens empfehlen.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
es Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
No he visto drivers para el uso
mlduran, 16.03.2021
Cumple su funcion, pero el problema es que hay que utilizar el driver Asio All, ya que al menos yo, no he visto ningun driver esppecifico en la pagina para descargar.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Genial einfach und gute Qualität
Berichter, 11.01.2021
Wunderbare Sache: Tolle Qualität und kein Schnick-Schnack. Außerdem so nett anzusehen, dass man es auch direkt auf dem Tisch platzieren kann.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
