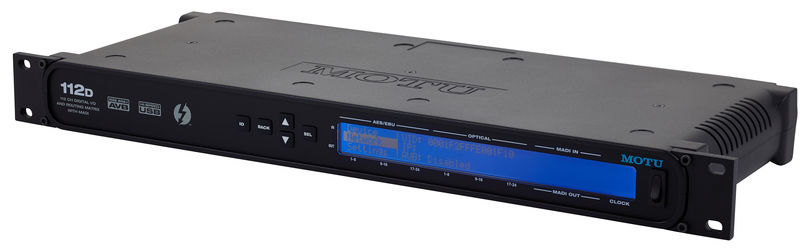

MOTU 112D AVB
Thunderbolt-, AVB- and USB Audio Interface
- With Routing-Matrix
- 112 Channels of digital inputs and outputs: 24 channels of AES / EBU, 24 ADAT channels and 64 channels MADI can be used simultaneously
- Supported sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- 48-Channel digital mixer with EQ and compressor in each channel (32-bit floating point, on-board DSP)
- Remote control via Web App Control (Mac OS, Linux, Android, Windows)
- AVB Ethernet functionality
- LCD Display
- Internal power adapter
- Body: 19" / 1 U
Connections:
- Thunderbolt
- TP Network
- USB 2.0 (USB 3.0 / iOS compatible)
- 6 Optical ADAT In- and Outputs
- MADI In- and Output BNC
- 3 SUB D-25 AES/EBU
- Word clock input and output
Further Information
| Recording / Playback Channels | 64x64 |
|---|---|
| Number of Mic Inputs | 0 |
| Number of Line Inputs | 0 |
| Number of Instrument Inputs | 0 |
| Number of Line Outs | 0 |
| Headphone Outs | 0 |
| Phantom power | No |
| Number of S/PDIF Connectors | 0 |
| Number of ADAT Connectors | 6 |
| Numer of AES/EBU Connectors | 12 |
| Number of MADI Connectors | 1 |
| Ethernet | 1 |
| Other Connectors | No |
| MIDI interface | No |
| Word Clock | 1xIn, 1xOut |
| Max. sample rate (kHz) | 192 kHz |
| Max. resolution in bit | 24 bit |
| USB Bus-Powered | No |
| Incl. power supply | Yes |
| USB Version | 2.0 |
| Width in mm | 483 mm |
| Depth in mm | 0 mm |
| Height in mm | 44 mm |
