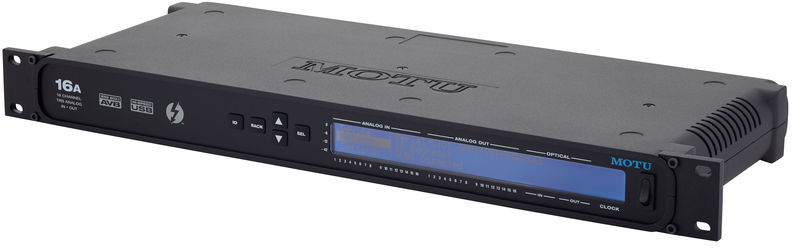

MOTU 16A AVB

Audio Interface

  • Thunderbolt and USB 2.0 port as well as AVB connectivity
  • 24-Bit / 192 kHz
  • On-board DSP with digital mixer and effects - Classic Reverb, Compressor (modeled LA-2A), EQ (modeled British analog console EQ)
  • 324 x 24 LCD Display
  • 16 x Line input 6.3 mm
  • 16 x Balanced line output 6.3 mm
  • 2 x ADAT input and output with S-MUX
  • Word clock input and output
  • 1 x Stereo headphone output
  • Web App Control (remote control via laptop, tablet or smartphone)
  • AVB Ethernet Port
  • Format: 19" / 1 HE
  • Includes: Audiodesk 4 Software

Further Information

Recording / Playback Channels 128x128
Number of Mic Inputs 0
Number of Line Inputs 16
Number of Instrument Inputs 0
Number of Line Outputs 16
Headphone Outs 0
Phantom Power No
Number of S/PDIF Connectors 0
Number of ADAT Connectors 2
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 1
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver No
Thunderbolt Version 2
Width in mm 483 mm
Depth in mm 177 mm
Height in mm 44 mm

These are other customers' choices:

Customers who looked at this item have bought these:

MOTU 16A AVB
28% bought this exact product
MOTU 16A AVB
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$1,390 Add to Basket
MOTU 828ES
10% bought MOTU 828ES $1,029
Behringer UMC1820
8% bought Behringer UMC1820 $199
Focusrite Scarlett 2i2 3rd Gen
5% bought Focusrite Scarlett 2i2 3rd Gen $149
MOTU 24 AI
4% bought MOTU 24 AI $990
Our most popular USB Audio Interfaces
13 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
sound
quality
Tricky set-up but great soundcard
06.12.2015
Great soundcard but not so easy to set-up...

I'm a longtime MOTU user (15+ years) but I found the initial set-up of this soundcard quite difficult. I found the MOTU manuals etc are not very helpful with this.
Let me mention a couple of things here that might help others in the same situation:
When you launch the AVB Discovery App, it can seem like nothing happens. But the tiny app icon will appear in your deskyop menu bar (next to clock etc). Its easy to miss. You have to click on this icon, select your device and you will access the web control app in your browser.
I ended up accessing the web app via Ethernet cable, which led to my next problem. Apparently leaving the Ethernet cable connected can interfere with the correct operation of the Thunderbolt cable. My 16A wouldn't recognize changes in sample rate, or let me change sample rate manually. I could not discover the reason for this, and I even thought the 16A was faulty. Then on a forum I stumbled across the advice not to have both Ethernet and TB connected at the same time. This solved the problem.
Apart from this early confusion, I'm very happy with the 16A. It sounds great and has all the connectivity I need for my analogue gear.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
great audio interface
marlasky, 22.12.2020
I bought it after having too many synths to connect to my focusrite. The amount of inputs is perfect for my setup. An digital mixer is accessible using an app or webpage, which saves me from having to have space and budget for an analog mixer on my desk. Another great feature is DC-coupled outputs, meaning they can be used to send CV and gate signals to (semi-)modular synths. Latency using usb is acceptable to me as I am far from being a pro.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Wenn man viele Ein- & Ausgänge braucht
Mika Tuomas, 24.09.2014
Ein super Interface wenn man viele Ein- und Ausgänge braucht. Ich nutze es mit Pro Tools und Logic an einem Mac Mini über Thunderbold und es funktioniert perfekt. Die Einbindung ist ein Kinderspiel. Man sollte nur wissen das es aktuell noch keine Treiber für Windows gibt! Auch der hier erwähnte Kopfhörerausgang ist nicht vorhanden. Stört aber auch nicht, da es genug andere Ausgänge gibt und dieses Interface sowieso an weitere Geräte angeschlossen wird. Die Latenz ist geringer als bei manchen Hardware Geräten und nicht mehr spürbar (lt. Hersteller bei 32 Samples).
Interessant ist die Programmierung des Gerätes: Diese geschieht vollständig im Browser und ist somit sehr zukunftssicher und verständlich. Auch die Effekte vom internen Prozessor sind gut (Compressor & EQ sogar sehr gut!). Ich habe einen 24 Kanaligen Mix gemacht und hatte eine Prozessorauslastung von ca. 60% (im Interface). Der Rechner wurde dabei garnicht belastet! Interessant wird dies wenn man das Interface als "Mischpultersatz" live verwenden möchte: Hier geht es auch ohne Rechner und man kann es (per Ethernet am WLAN-Router angeschlossen) vorher Programmieren und die Einstellungen über´s Smartphone oder Tablett abrufen und verändern.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
L'idéal pour un mixage hybride
La13, 06.03.2021
Dans mon studio, la MOTU est connectée à tous mes eq et compresseurs grâce à toutes ses entrées/sorties (16). Elle met un certain temps à s'allumer mais une fois en place, pas de souci de latence ni de plantage pour l'instant.

Je la sors lors d'enregistements nomades également, et j'y fais rentrer tous mes préamps externes.
Le logiciel Pro Audio Control est clair, les routages d'entrées/sorties sont simples à effectuer.

Seul bémol, je n'arrive pas à effectuer la mise à jour du firmware pour l'instant, mais ça n'a pas l'air d'affecter ses capacités.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
