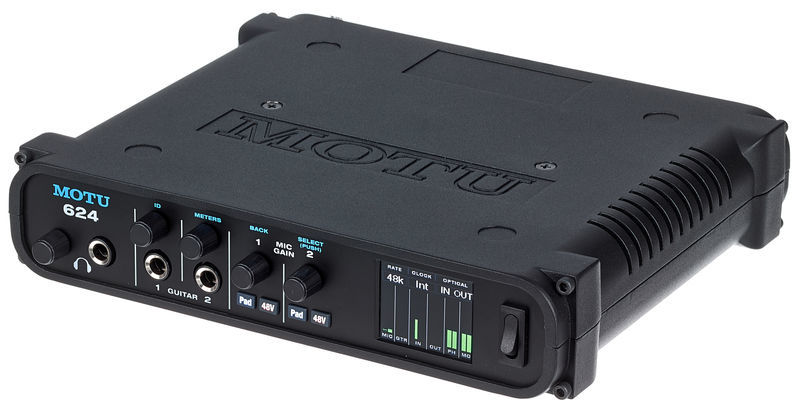

MOTU 624 AVB

Audio Interface

  • With Thunderbolt and USB 3.0 connection as well as AVB connection
  • 24 bit / 192 kHz
  • ESS Sabre32 DAC technology
  • Compressor (modeled LA-2A)
  • EQ (modeled British analog Console EQ)
  • 324 x 24 LCD display
  • 2x Instrument Input 1/4 "TR
  • 2x Mic In (XLR)
  • 4x Line input 6.3 mm jack
  • 4x Line output balanced 6.3 mm jack
  • 2x Main Out balanced 6.3 mm jack
  • 2x ADAT input and output and the S-MUX
  • Word clock input and output
  • Web Access Control (remote control via laptop, tablet or smartphone possible)
  • AVB Ethernet Port
  • Incl. Audiodesk 4 Software

Further Information

Recording / Playback Channels 128x128
Number of Mic Inputs 2
Number of Line Inputs 4
Number of Instrument Inputs 2
Number of Line Outputs 6
Headphone Outs 1
Phantom Power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 1
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 1
Other Connectors No
MIDI Connectors No
Word Clock No
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver No
Thunderbolt Version 2
Width in mm 220 mm
Depth in mm 177 mm
Height in mm 44 mm
9 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 / 5.0
  • handling
  • features
  • sound
  • quality
7 written ratings Read all reviews
Total
handling
features
sound
quality
Excellent quality
M_Alex, 08.08.2017
Excellent power, flexibility and sound quality.
Works great on Windows 8.1 / 10 x64 (except Discovery app which i would disable anyway because i can launch Firefox/Chrome manually for the Web app) and Linux, connected on USB 3.0 port.
It's fast and stable.
In unusual situations like when i close the Linux VM, the sound mutes and i need to switch the sample rate to get the sound back. I have never needed to restart the machine.
I think it is intelligently designed, including the control Web app.
However, it must stay away from strong EM fields.
I'm also expecting to receive soon the Digital Performer 9 and the MOTU bag from the MOTU dealer, Klemm Music Technology.
Helpful · Not helpful · Report
