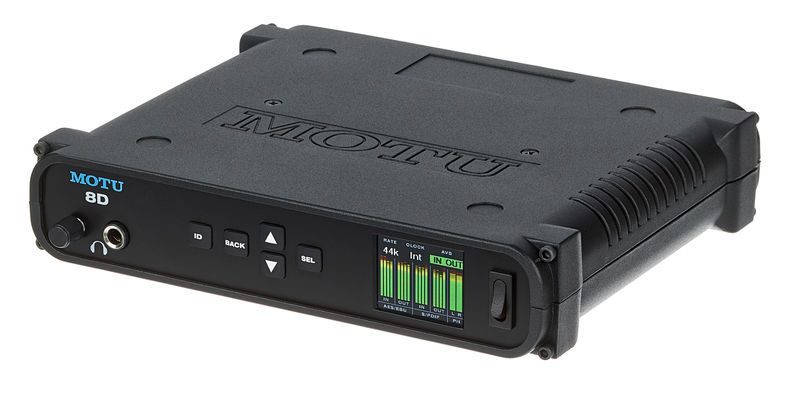

MOTU 8D

Audio Interface

  • AES3, SPDIF, USB, AVB-TSN Ethernet audio interface with DSP and mixing
  • Up to 16 inputs and outputs
  • Number of analog I / Os: 0 In / 2 out
  • Number of microphone inputs: 0
  • Digital I / O: 2x SPDIF Coax, AES I / O
  • Monitor Mixing: Hardware monitoring DSP-supported
  • Sampling rate: 192 Khz
  • Resolution: 24 bit
  • External 12-18 V DC power supply
  • Design: Desktop 9.5" / 1U
  • 1x USB 2.0 Audio Class Compliant, USB 3.0 and iOS compatible
  • Dimensions: 220 x 178 x 45 mm
  • Weight: 0.9 kg

Further Information

Recording / Playback Channels 64x64
Number of Mic Inputs 0
Number of Line Inputs 0
Number of Instrument Inputs 0
Number of Line Outs 0
Headphone Outs 1
Phantom power No
Number of S/PDIF Connectors 2
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 2
Number of MADI Connectors 0
Ethernet 1
Other Connectors No
MIDI interface No
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 220 mm
Depth in mm 178 mm
Height in mm 45 mm
3 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Bin begeistert!! TOP QUALITÄT
Black Matt, 18.10.2019
Habe mir die motu zugelegt da ich bei meinem AD Wandler keine USB Übertragung habe und irgendwie musste ich gewährleisten das ich das Audio Signal in den Rechner bekomme. Die MOTU 8D ist genau das perfekte Werkzeug dafür! Über AES/EBU von der ADC raus und direkt in die Motu 8D und von dort weiter über usb!

Würde ich sofort wieder kaufen. Fantastisches Produkt!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Ramin et Claire, 08.06.2020
Un appareil dédié à la sélection des sources numériques comme un préamplificateur dans le domaine analogique, c’est une grande idée, avec les différents types de liaison (spdif, AES-EBU, Ethernet...) c’est extraordinaire, pouvant faire toutes les combinaisons entre les entrées et les sorties c’est simplement génial. Cependant avez vous besoin de ça ? Imaginer une matrice avec les entrées/sorties à choisir sur un ordinateur, imaginer les moments où une entrée n’est pas reconnue par MOTU et que vous devez la déconnecter pour la remettre en place avant de redémarrer le 8D, imaginer les taux d’échantillonnages qu’ils faut faire correspondre entre chaque album... c’est beaucoup de complexité et il faut vraiment avoir un vrai studio pour que ça vaille le coup. A cela s’ajoute un manuel non traduit en français.
Maintenant voyons l’autre critère important : le son. Comme toujours avec MOTU il est d’une grande transparence dans les timbres, beaucoup de détails, beaucoup de dynamisme et il y a vraiment rien à dire. Une écoute Audiophile. Une seule reproche à faire cependant : une fréquence d’échantillonnage qui s'arrête à 96 Khz alors qu’il y a tant de fichiers audio à 192 kHz.
En conclusion : appareil excellent mais d’un usage limité
