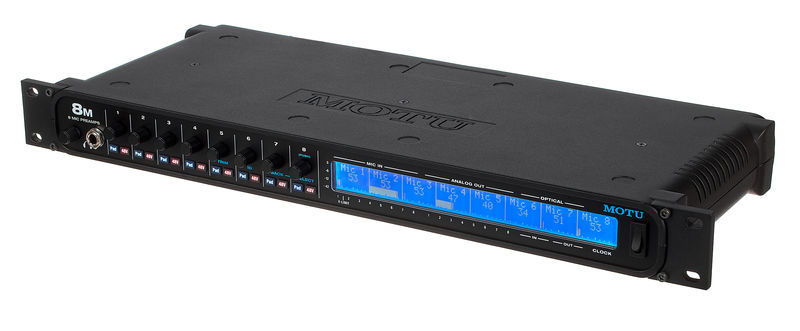

MOTU 8M AVB

Audio Interface
- Thunderbolt and USB 2.0 port as well as AVB connectivity
- 24-Bit / 192 kHz
- On-board DSP with digital mixer and effects - Classic Reverb, Compressor (modeled LA-2A), EQ (modeled British analog console EQ)
- 324 x 24 LCD Display
- 8 x Mic / Line / Instrument input Combo XLR / 6.3 mm jack
- 8 x Balanced line output 6.3 mm
- 2 x ADAT input and output with S-MUX
- Word clock input and output
- 1 x Stereo headphone output
- Web App Control (remote control via laptop, tablet or smartphone)
- AVB Ethernet Port
- Format: 19" / 1 HE
- Includes: Audiodesk 4 Software
Further Information
Recording / Playback Channels | 128x128 |
---|---|
Number of Mic Inputs | 8 |
Number of Line Inputs | 8 |
Number of Instrument Inputs | 8 |
Number of Line Outputs | 8 |
Headphone Outs | 1 |
Phantom Power | Yes |
Number of S/PDIF Connectors | 0 |
Number of ADAT Connectors | 2 |
AES/EBU Connectors | 0 |
Number of MADI Connectors | 0 |
Ethernet | 1 |
Other Connectors | No |
MIDI Connectors | No |
Word Clock | 1xIn, 1xOut |
Max. Samplerate | 192 kHz |
Max. Resolution in Bit | 24 bit |
Bus-Powered | No |
Incl. Power Supply | Yes |
Windows Thunderbolt driver | No |
Thunderbolt Version | 2 |
Width in mm | 483 mm |
Depth in mm | 177 mm |
Height in mm | 44 mm |
