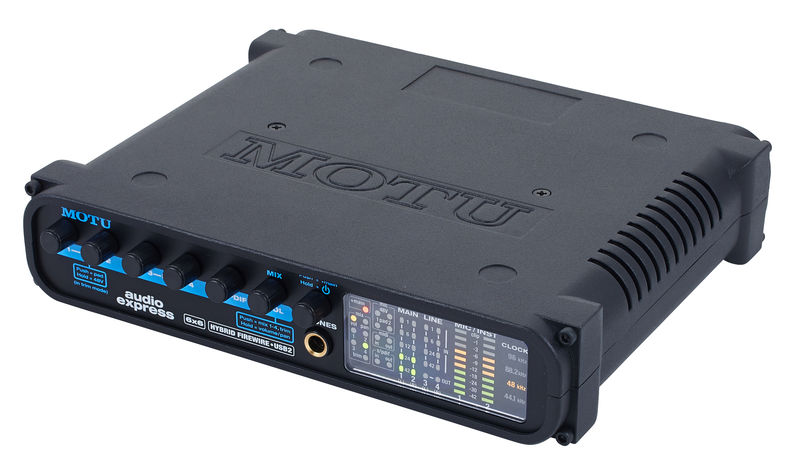

MOTU Audio Express

Firewire / USB 2.0 audio interface
- 24-bit / 96 kHz
- 2 Instrument / MIC inputs (XLR / TRS jack) with 20 dB pad (switchable)
- 48 V phantom power (switchable) and high impedance guitar input
- Stereo Line In: 2x stereo jack balanced
- 2x Stereo Out: 4x stereo jack balanced
- S / PDIF I / O
- MIDI I / O
- Headphone out with its own volume control
- Audio analysis tools (FFT display, correlation display, oscilloscope)
- Firewire bus-powered
- WDM / ASIO / CoreAudio drivers
- CueMix software
- Including power supply and MOTU Audiodesk sequencer software for MAC
Further Information
Recording/Playback Channels | 6/6 |
---|---|
Number of microphone inputs | 2 |
Number of Line Inputs | 2 |
Number of instrument inputs | 2 |
Number of Line Outs | 4 |
Headphone Outputs | 1 |
Phantom power | Yes |
S/PDIF Connectors | 1 |
ADAT Connectors | 0 |
AES/EBU Connectors | 0 |
MADI Connectors | 0 |
Ethernet | 0 |
Misc. Connectors | No |
MIDI Interface | Yes |
Word Clock | No |
max. Samplerate in kHz | 96 kHz |
Max. Resolution in bit | 24 bit |
Bus-Powered | Yes |
Incl. power supply | Yes |
Firewire Version | 400 |
Width in mm | 241 mm |
Depth in mm | 178 mm |
Height in mm | 45 mm |
