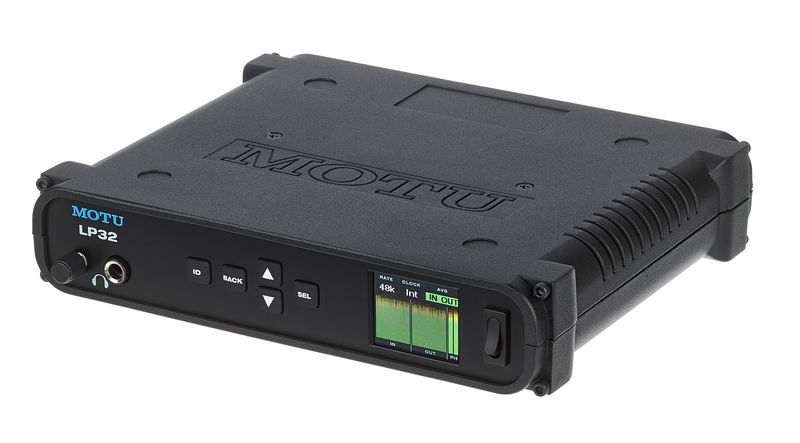

MOTU LP32

Audio Interface

  • Optical ADAT, USB, AVB-TSN Ethernet audio interface with DSP and mixing
  • Up to 64 inputs and outputs
  • Number of digital I / Os: 4x optical ADAT I / O
  • Number of microphone inputs: 0
  • Monitor Mixing: Hardware monitoring DSP-supported
  • Sampling rate: 192 Khz
  • Resolution: 24 bit
  • External 12-18 V DC power supply
  • Design: Desktop 9,5 "/ 1 HE
  • 1x USB 2.0 Audio Class Compliant, USB 3.0 and iOS compatible
  • Dimensions: 220 x 178 x 45 mm
  • Weight: 0.9 kg

Further Information

Recording / Playback Channels 64x64
Number of Mic Inputs 0
Number of Line Inputs 0
Number of Instrument Inputs 0
Number of Line Outs 0
Headphone Outs 1
Phantom power No
Number of S/PDIF Connectors 0
Number of ADAT Connectors 4
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 1
Other Connectors No
MIDI interface No
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 220 mm
Depth in mm 177 mm
Height in mm 45 mm
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
