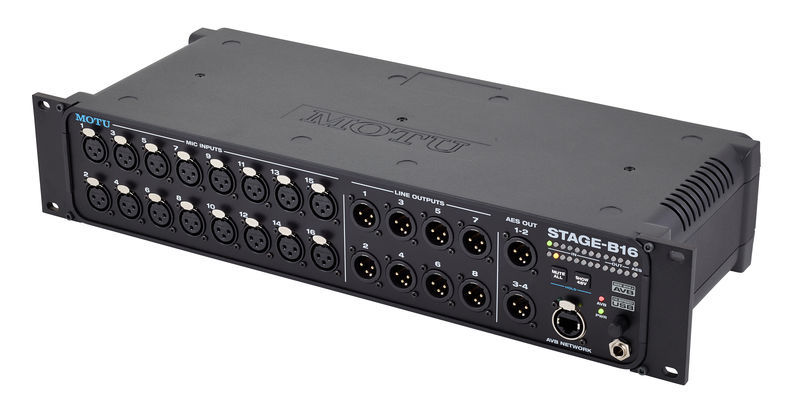

MOTU Stage-B16

Combined Audio Interface, Standalone Mixer and Flexible Stagebox
- 24-Bit / 192 kHz
- 32-Bit floating-point processing
- DSP controlled with AVB Ethernet
- DSP mixing and effects processing
- Web app control
- Format: 19" / 2U
- System requirements: Mac OS X 10.8 or later, Windows 7 or later
- Includes AudioDesk 4.0 for Mac and Windows (to download)
Connections:
- 16 Microphone inputs XLR
- 8 Line outputs XLR
- AVB Ethernet port
- 2 AES outputs, XLR
- Stereo headphone output, 6.3 mm jack
- USB 2.0 connection
- Switchable phantom power, + 48V
- 1 MIDI In / Out
Further Information
Recording / Playback Channels | 64x64 |
---|---|
Number of Mic Inputs | 16 |
Number of Line Inputs | 0 |
Number of Instrument Inputs | 0 |
Number of Line Outs | 8 |
Headphone Outs | 1 |
Phantom power | Yes |
Number of S/PDIF Connectors | 0 |
Number of ADAT Connectors | 0 |
Numer of AES/EBU Connectors | 2 |
Number of MADI Connectors | 0 |
Ethernet | 1 |
Other Connectors | No |
MIDI interface | Yes |
Word Clock | No |
Max. sample rate (kHz) | 192 kHz |
Max. resolution in bit | 24 bit |
USB Bus-Powered | No |
Incl. power supply | Yes |
USB Version | 2.0 |
Width in mm | 483 mm |
Depth in mm | 178 mm |
Height in mm | 89 mm |
