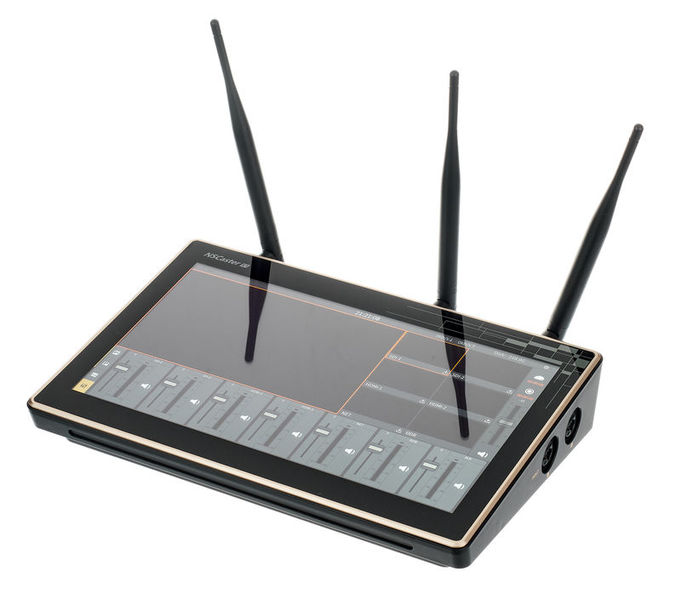

Nagasoft Caster-X1

All-in-one Live Streaming Tablet

  • With 2x SDI and HDMI inputs and 11.6" Full HD touchscreen monitor
  • Multi-platform live streaming
  • No delay switching
  • Audio mixer function
  • Up to 6 video signals in different resolutions (2x SDI, 2x HDMI, 1x network and 1x internal memory) can be connected at the same time
  • Various streaming signals can be directly integrated via the NET input
  • Stored video material can be accessed via the DDR channel
  • Many functions such as multi-channel switching, recording, streaming, audio mixing, special effects and monitoring
  • Has a built-in Ethernet, a WIFI module and a 4G module
  • PTZ camera control (including direction control, zoom)
  • Data transfer via USB 3.0 interface to external USB storage
  • CPU: Dual core, ARM 1.1 GHz
  • Storage capacity: 2 GB RAM - 512 MB ROM - 250 GB M.2
  • 4G modules LTE FDD: B1/B3/B5/B8 and LTE TDD: B38/B39/B40/B41
  • WIFI modules IEEE 802.11n, IEE 802.11g, EE 802.11b
  • Power consumption: 23.6 W
  • Input voltage: DC 19 V
  • External power supply: 100 ~ 240 V AC
  • Dimensions: 294 x 193 x 54 mm
  • Weight: 1.25 kg
  • Includes aluminium hard case and 230 V power adapter
