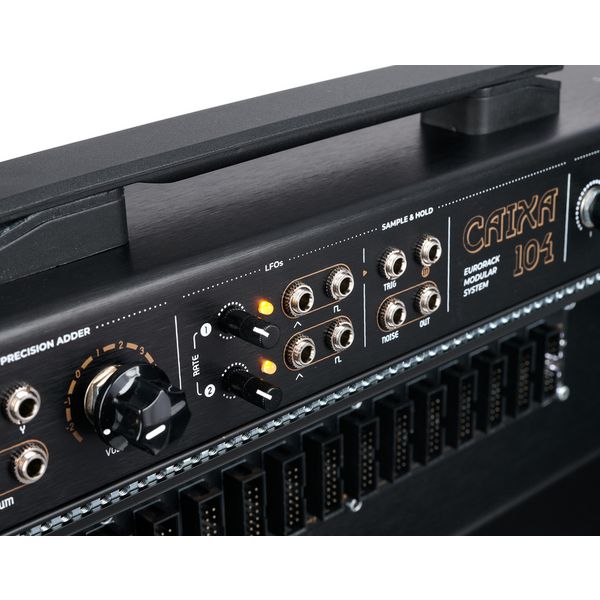

NANO Modules CAIXA 104
Start 360°
Transportable Eurorack Case
- 2 Inputs: 6.3 mm TRS, balanced, with gain control of max. +20 dB and level meter
- 2 Integrated active 1-to-3 multiples
- Precision Adder with 2 CV inputs
- 2 Sum outputs and octave rotary switch, range: -2 to +5 octaves
- 2 LFOs, each with frequency control and triangle and square wave output
- Sample & Hold stage with separate output for white noise
- 2-Channel stereo mixer
- Stereo output with master control: 6.3 mm TRS, balanced
- Stereo headphone output with volume control: 3.5 mm jack
- Integrated bus board with 18 slots for modules
- Installation depth for modules: 60 mm and 47 mm above busboard
- Carrying handle
- Power supply specifications: 1.25 A (+12 V) / 1.1 A (-12 V) / 500 mA (+5 V)
- Width: 104 TE
- Dimensions (W x D x H): 535 x 200 x 85 mm
- Weight: 1.7 kg
- Incl. an external power supply unit
- Suitable CAIXA 104 Soft Case: Article no. 544862, not included in the delivery
available since
June 2022
Item number
544861
sales unit
1 piece(s)
System
Eurorack
Width
104 TE / HP
Hight
3 U
Power Supply
Yes
Formfactor
Desktop
Power Supply Specifications
+12V/1250mA, -12V/1100mA, 5V/500 mA
