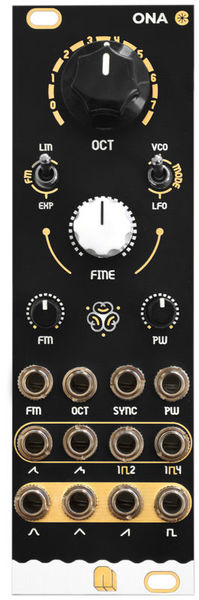

NANO Modules ONA

NANO Modules ONA; Eurorack module; CEM3340-based analog VCO/LFO; octave switch (range: 8 octaves) and Fine-Tune control; selectable VCO- or LFO-Mode; switchable linear or exponential FM input; CV inputs for FM and Pulswidth, both with Attenuators; hard-sync input; waveform outputs: sine, triangle, sawtooth, pulse, two complex waveform outputs and two squarewave suboctaves (-1 octave and -2 octaves); power consumption: 50mA (+12V) / 30mA (-12V); width: 8 HP; depth: 30mm

Further Information

Analog Yes
Digital No
Width 8 TE / HP
variants NANO

This product is currently sold out

These are other customers' choices:

Mutable Instruments Plaits
14% bought Mutable Instruments Plaits $232
Mutable Instruments Tides
11% bought Mutable Instruments Tides $232
Behringer 112 Dual VCO
10% bought Behringer 112 Dual VCO $106
Dreadbox Hysteria
8% bought Dreadbox Hysteria $100
Our most popular Oscillator Modules
3 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • quality
Total
handling
features
quality
Perfect all-round VCO with additional features
Frangula, 24.11.2020
I've been looking for a solid analog Eurorack VCO for a long time, especially because most Eurorack VCO's do not pitch track very well. I use my Eurorack setup next to digital synths that play chords, so perfect pitch tracking and perfect tuning is very important to me.
This module however has the best tracking I've seen so far in small form factor analog eurorack VCO's!
It also features very extensive calibration options with multiple trimmers if the tuning is off.

The ONA has a very smooth and warm sound with its own character. In my opinion can be somewhat compared to a mix between the smoothness of a Moog VCO and the tightness of a classic Roland VCO.
Next to the traditional waveforms the 2 extra complex waveforms add a lot more tone capabilities. You can find a lot of different sweet spots on these waves by adjusting de PW knob that remind me of classic FM and Wavetable type sounds.

All in all this is the perfect module if you're looking for a smooth Analog VCO for Eurorack with perfect pitch tracking and some additional features up its sleeve.
