Pittsburgh Modular Taiga

Semi-Modular Paraphone Analogue Synthesizer

  • Completely analogue signal path
  • 3 Oscillators, each with controls for pitch, FM, shape (sine, triangle, sawtooth, square) and waveshaper/wavefolder
  • Noise generator
  • 4-Channel mixer
  • Adjustable preamplifier with overdrive circuit for external signal sources (gain: x30)
  • LFO with two waveforms (triangle and square) and wide frequency range (41s - 500Hz)
  • Multimode filter (low-pass, band-pass, high-pass) with adjustable frequency and resonance, plus 2 CV inputs with attenuators, 2 ADSR envelopes
  • Dynamics controller, switchable between VCA and lowpass gate, with adjustable frequency/bias, resonance and decay phase
  • Analog delay with adjustable delay time, feedback and wet/dry mix
  • Built-in MIDI-to-CV/Gate interface
  • Further features: Arpeggiator, random sequencer, clock divider, clock generator with tap tempo, sample & hold, 2-channel mixer
  • CV inputs for all parameters and outputs for all individual sections
  • Line output and headphone output: 3.5 mm jack
  • Can be used as a complete Eurorack synthesiser voice (width: 60 U, depth: 40 mm)
  • Power consumption when used as a module: 650mA (+12V) / 475mA (-12V)
  • Dimensions of desktop housing (W x D x H): 326 x 135 x 112 mm
  • Weight: 1812 g

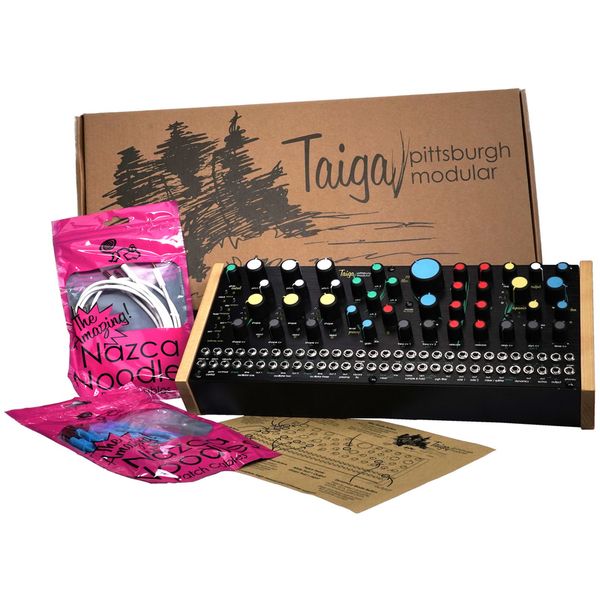

  • Incl. external power supply unit, TRS-DIN MIDI adapter and 10 Nazca Noodles patch cables
available since March 2023
Item number 560017
sales unit 1 piece(s)
Design Desktop
Polyphony 1
Sound Generation Analogue
MIDI interface 1x In
Storage Medium None
USB-port No
Effects No
Arpeggiator No
Number of Analog Outputs 1
Digital Output No
Display No
Width 60 TE / HP
Special Features usable as Eurorack Module
