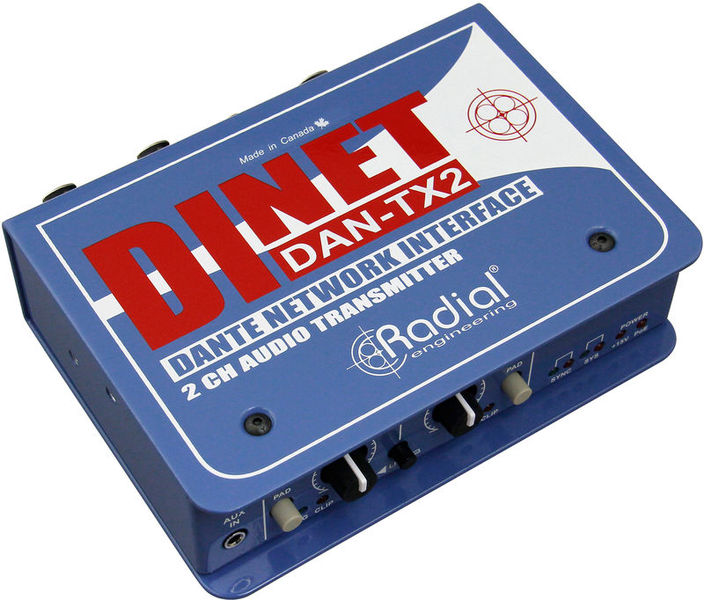

Radial Engineering DiNET DAN-TX2
Dante Network Transmitter
- 2 Channels
- Frequency range: 20 - 20,000 Hz
- 24 Bit / 96 kHz analog-digital converter
- 2 XLR / 6.3 mm jack combo inputs
- 1 RCA input
- Processes signal levels up to +24 dBu
- Adjustable trim control for input level
- -18 dB input pad for line sources with a high output level
- Ethernet via CAT5 or CAT6 cable
- Dynamic range:> 103 dB
- Dimensions (W x H x D): 121 x 60 x 147 mm
Further Information
| Amount Of Channels | 2 |
|---|---|
| AD Conversion | Yes |
| DA Conversion | No |
| Max. Resolution | 24 bit |
| Max. sampling rate | 96 kHz |
| S/PDIF Connecor | No |
| AES/EBU Connector | No |
| ADAT | No |
| Word clock | No |
| Number of analog inputs | 2 |
| Number of Analog Outputs | 0 |
| Headphone connection | No |
Do you like this product?
Related Products
The price in USD is a guideline price only!
Available immediately This item is in stock and can be dispatched immediately.
Standard Delivery Times| sales rank in this product group | 33 |
| at thomann.de | 10108 |
| item number | 506356 |
| sales unit | 1 piece |
| available since | January 2021 |
-
