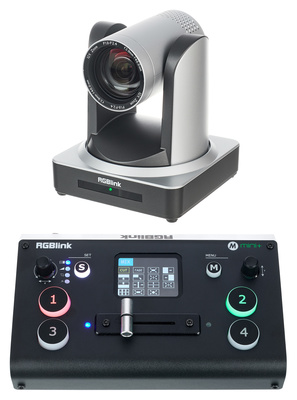

RGBLink PTZ Camera 12x + Mini+ Bundle
RGBLink PTZ Camera 12x Optical Zoom incl. Wall Mount and Mini+ Switcher Bundle; Set consisting of PTZ camera with 12x optical zoom (#510965), wall mount (#515543) and RGBLink Mini+ multi-format HDMI live streaming video switcher (#506518); Features PTZ camera:; high quality 1/2. 8'' CMOS sensor; autofocus; optical zoom: 12x f = 3.9 ~ 46,1 mm; angle of view: 6.3° telephoto / 72,5° wide angle; aperture: F1.8 - F2.4; Connections: 3G-SDI and HDMI output / Network 100 MBit / RS232 In and Out / RS485 In / Stereo Audio in 3.5 mm; Output signals: HDMI/SDI SMPTE - 720p@25/29.97/30/50/60 | 1080i@50/59.94/60 | 1080p@25/30/50/59.94/60 (supports vertical and horizontal flipping of the image); Pan range: +/- 170° Pan / -30° to +90° Tilt; variable speed from 0.1° up to 80° per second; Video Codecs: H.264, H.265 (Dual stream output); Audio compression: AAC, MP3, PMC up to 128 Kbps; Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200 / 9600 / 4800 / 2400 bps; Network Protocol: RTSP, RTMP, ONVIF, GB/T28181; incl. IR remote control, power supply and RS-232 cable; input voltage: DC 12 V / 1.5 A; max. power consumption: 12 W; dimensions: 150 x 150 x 168 mm; weight: 1.4 kg; features RGBLink Mini+:; USB 3. 0 live-streaming port; no drivers required; live preview for all 4 inputs; control of up to 8 x IP PTZ cameras, both via the Mini+ directly and via the software; automatic and manual switching; transition effects; Picture-In-Picture; Control Remote App; Plug and Play with Facebook, YouTube, Zoom, MS Teams etc.; Output: 1x HDMI-A, 1x USB Type A; Network: 1x RJ45 LAN; Supported standards: HDMI 1.3, USB 3.0, H.265 / ISO / IEC 23008-2; Power supply: DC 12 V / 1.5 A, max 18 W; dimensions (W x H x D): 180 x 75 x 112 mm; weight: 600 g; features wall mount:; the camera is mounted upright; the mount has all the necessary holes and the necessary screws are included; material: metal with powder coating; colour: silver-grey; dimensions (LxWxH): 25 x 15 x 8 cm; weight: 680 g;
