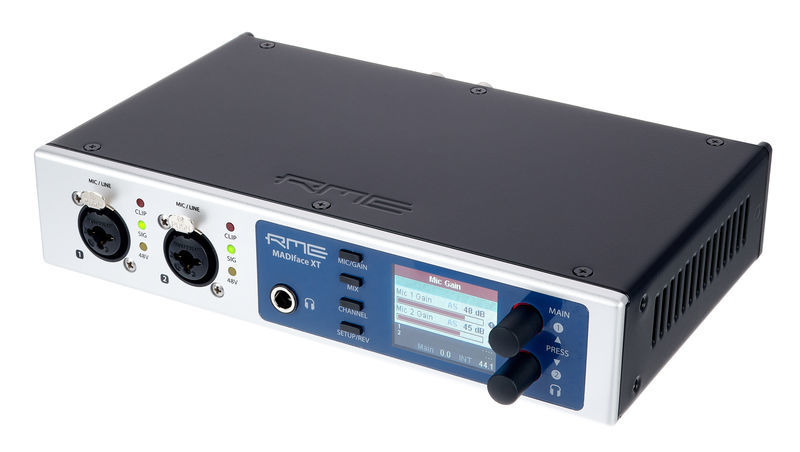

RME Madiface XT

MADI / USB3 Audio Interface

  • 394 Channels at 192 kHz
  • 3x MADI Input and output (2x optical and 1x coaxial)
  • AES / EBU I / O
  • MIDI I / O
  • Word clock I / O
  • 4-Channel DA converter
  • Intelli clock control
  • SteadyClock
  • SyncCheck
  • SyncAlign
  • DIGICheck and TotalMix
  • Matrix router
  • LCD Display
  • 2 Mic / line inputs
  • 2 XLR Line output
  • Stereo headphone output
  • Stand-alone usable
  • Remote control via MIDI
  • Format: 9.5 "/ 1U
  • Incl. AES / EBU and MIDI breakout cable BOAESMIDI (length 20 cm)

Further Information

Recording / Playback Channels 196x198
Number of Mic Inputs 2
Number of Line Inputs 2
Number of Instrument Inputs 0
Number of Line Outs 2
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 0
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 1
Number of MADI Connectors 3
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock 1xIn, 1xOut
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 3.0
Width in mm 265 mm
Depth in mm 159 mm
Height in mm 44 mm
9 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
klebt am Madistream
19.02.2014
Funktioniert einwandfrei auch mit Treibern unter 1.x
Totalmix FX ist ein großartiges aber auch komplexes Tool mit dem man sich je nach erwartetem Produktionsaufwand vorher eingehend beschäftigen sollte.
Wer dieses Interface womöglich gelegentlich nur stereo nutzt, sollte sich darüber im Klaren sein, dass trotzdem zumindest 1 kompletter Madistream + 2x Stereo übertragen werden wollen und entsprechende Übertragungsrecourcen auf Rechnerseite erforderlich sind. Gemeint ist explizit die USB2 bzw. USB3 Schnittstelle, nicht die Festplatte. Mit älteren Rechnern wäre ich hier vorsichtig.
PCIe extern läuft perfekt und noch wesentlich recourcenschonender.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Fonctionne.
Frederic970, 04.12.2013
Interface commandée de nouveau en septembre 2015 après un premier essai malheureusement sans succès lors de sa sortie en 2013..
Aujourd'hui elle fonctionne. Je change donc mon évaluation.
Je travail avec du RME depuis quelques années (3xUFX, des Octamics XTC)
et aujourd'hui la Madiface XT est aussi fonctionnelle que le reste des produits RME déjà dans le parc du studio.
Très efficace pour de l'enregistrement "sur site", elle a tout pour se suffire à elle-même.
C'est enfin la fin des multipaires, vive le MADI!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
Mini-Allrounder
DanielP, 05.10.2020
Universallösung für jedes MADI-BackUp oder auch -Aufzeichnungssystem. Gut verarbeitet, sehr zuverlässig und auch diverse Möglichkeiten zur Ausgabe des Mixes.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound
God was thinking about it, RME did it :-)
Rafael4383, 13.10.2015
So much inputs and outputs with so many possibilities for this so little and light box.
The only negative point could be that its difficult to manage all these tracks with the 13" Screen ;-)
Thanks RME
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Show variations of this product
RME Madiface XT
(9)
RME Madiface XT

MADI / USB3 Audio Interface 394 Channels at 192 kHz, 3x MADI Input and output (2x optical and 1x coaxial), AES / EBU I / O, MIDI I / O, Word clock I / O, 4-Channel DA converter, Intelli clock...

RME Madiface USB
(26)
RME Madiface USB

MADI/USB Interface 128 Channels at 48 kHz, 64 Channels at 96 kHZ, 32 Channels at 192 kHz, With two inputs connected, converts coaxial to optical, SteadyClock, USB connector for audio input/output...

RME MADIface Pro
(10)
RME MADIface Pro

136-Channel MADI USB Audio Interface 24-Bit 192kHz, In total up to 68 inputs and outputs, All inputs are digitally controlled, 4 Analogue inputs for microphones (mic, line, instrument), Microphone...

$2,299
The shipping costs are calculated on the checkout page.
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
