Recording Set
- Includes AI-1 audio interface, NT1 microphone, SM6 shock mount, XLR microphone cable and Ableton Live Lite software
Features AI-1 audio interface:
- USB 2.0 audio interface
- 24-bit / 96 kHz
- Gain control with signal LED
- Switchable direct monitoring of the recording signal
- Switchable phantom power +48 V
- 1x Microphone / instrument combo input XLR / 6.3 mm jack
- 2x Line output 6.3 mm jack balanced
- Stereo headphone jack 6.3 mm jack
- USB-C
- Power supply via USB
- Dimensions: 124 x 100 x 38 mm
- Weight: 560 g
- Including USB C / A cable
Features NT1 large diaphragm condenser microphone:
- Gold-plated 1" capsule, stored in miniature Lyre of Rycote
- Black metal housing with scratch-resistant ceramic coating
- Extremely low self-noise (4.5 dBA)
- Directivity: Cardioid
- Transmission range: 20 - 20.000 Hz
- Output impedance: 100 ohms
- Sensitivity: 35.0 mV / Pa
- Replacement noise level: 4.5 dBA (according to IEC651), Max
- Output level: +8.0 dBu (1 kHz, 1% THD, 1 kOhm load)
- Dynamic range: 128 dB
- Boundary sound pressure level: 132 dB
- Signal-to-noise ratio: 90 dBA (according to IEC651)
- Requires phantom power 24 V / 48 V.
- Connection: 3-pin XLR
- Dimensions: 50 mm x 190 mm (diameter x length)
- Weight: 395 g

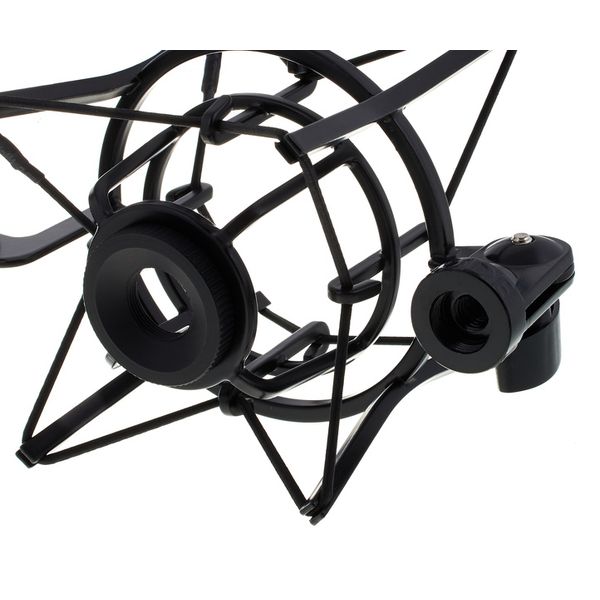

- Includes deluxe shock mount SM6 with Integrated pop screen protection and dust bag
- Made in Australia
- 10-year guarantee for registered users (special guarantee between manufacturer and buyer)
available since
February 2018
Item number
429948
sales unit
1 piece(s)
Recording / Playback Channels
1x2
Number of Mic Inputs
1
Number of Line Inputs
1
Number of Instrument Inputs
0
Number of Line Outs
2
Headphone Outs
1
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
No
Word Clock
No
Max. sample rate (kHz)
96 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Width in mm
124 mm
Depth in mm
100 mm
Height in mm
38 mm
Connection Format
USB port Type C
Included in delivery
560 g
Zero latency monitoring
1
