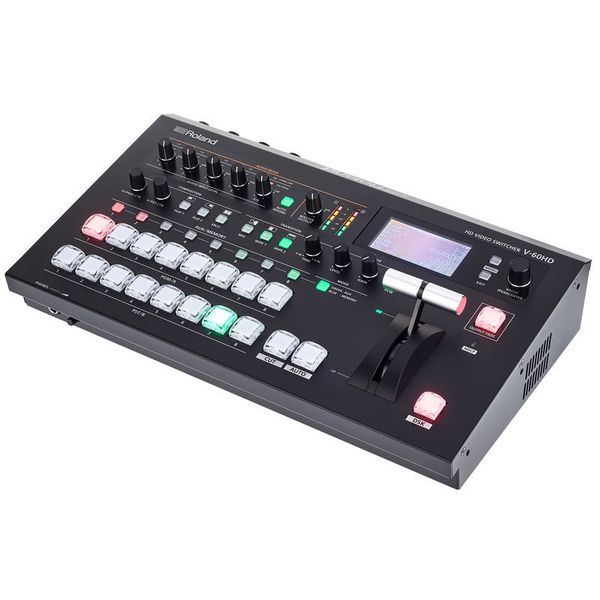

Roland V-60HD

1

HD Video Switcher

  • 8-Bit 4: 2: 2 (Y / Pb / Pr) video processing and built-in audio mixer
  • Versatile applications such as e.g. live events and streaming applications
  • Combines SDI inputs with scalable HDMI inputs
  • Powerful audio features such as Multi-channel embedded audio
  • Analogue XLR and RCA inputs
  • Broadcast cross-point buttons
  • Split and PinP images
  • 3" LCD screen on the front
  • Supports downstream keying (DSK)

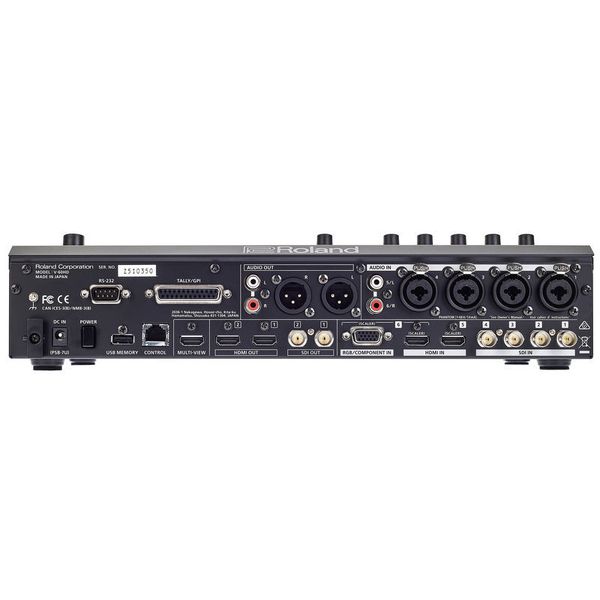

  • 4 x SDI inputs BNC with DE interlacing
  • 1 x Scalable HDMI input
  • 1 x Shared scalable RGB / HDMI input
  • 2 x SDI and 2 x HDMI output assignable to PGM / PVW and AUX
  • 1 x Multiview output for program preview and eight video sources with audiometers
  • LAN connection for wireless remote via Smart Tally
  • RS-232 for remote
  • USB port for still image upload and storage of program files
  • 18-Channel audio mixer with dynamic effects
  • Four XLR / jack combo jacks with 48V phantom power
  • Stereo RCA input
  • Integrated auto-mixing function
  • Power consumption: 37 W
  • Weight: 3 kg
  • Dimensions: 356 x 221 x 96 mm
  • Includes power supply
Streaming via USB No
available since February 2018
Item number 425817
sales unit 1 piece(s)
$3,869
The shipping costs are calculated on the checkout page.
In stock
In stock

This item is in stock and can be dispatched immediately.
