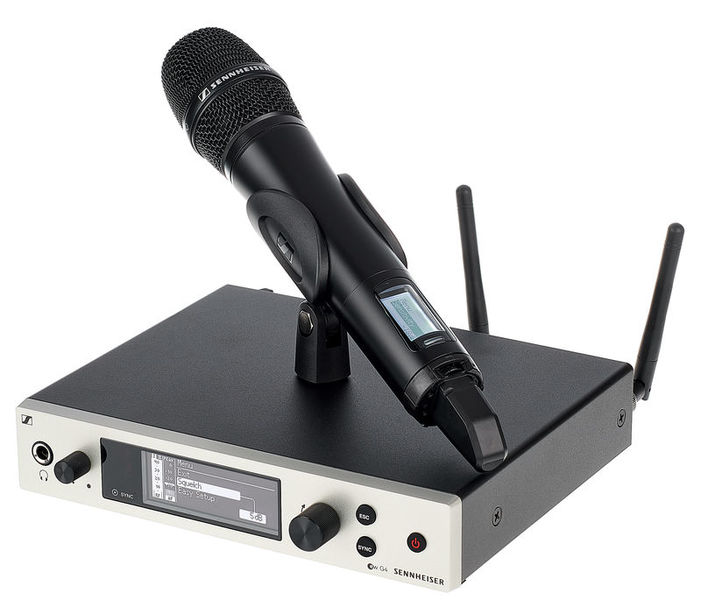

Sennheiser ew 300 G4-865-S DW Band

UHF Wireless System

• Consists of EM 300-500 G4 9.5" receiver, SKM 300 G4-S handheld transmitter with mute switch and E865 replaceable capsule
• Frequency range DW Band: 790 - 865 MHz
• Optionally also compatible with Neumann and MD 9235
• Includes GA 3 rack mount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries

Capsule features:

• Capacitor
• Polar pattern: Super-cardioid

Receiver features:

• 88 MHz bandwidth
• 20 Frequency banks with up to 32 presets for each
• Up to 32 compatible channels
• Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
• Frequency response: 25 - 18,000 Hz
• Frequency transmission over infra red interface
• Handheld transmitter with charging contacts for optional BA 2015 (NiMH) rechargeable battery (battery not included)
• Pilot tone
• Autotune to find free frequencies
• Integrated EQ
• Audio gain over 60 dB range
• Soundcheck mode
• 4-Level battery indicator on transmitter and receiver
• HDX compander
• LCD with AF level and channel display
• Switchable transmission power 10/30/50 mW
• 2 BNC antenna connector
• XLR-Male balanced and jack unbalanced
• Power supply 10.5 - 16 V DC
