Start 360°

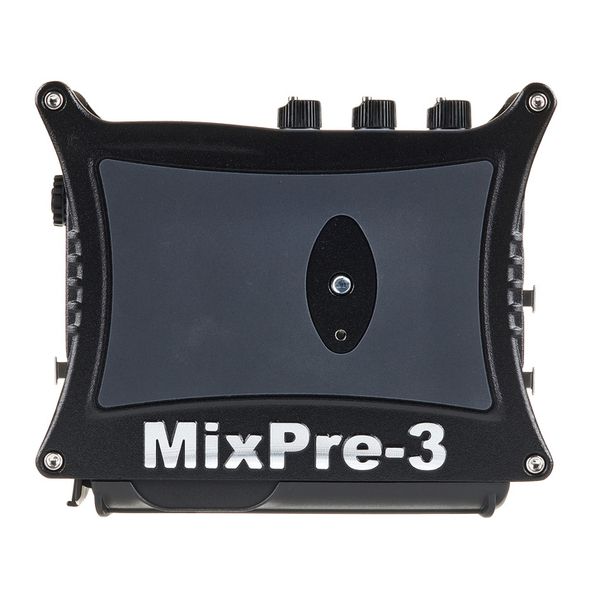

Portable audio recorder with USB audio interface
- 5 Tracks: stereo mix + 3 single inputs
- Recordings with maximum 32-bit float / 192 kHz
- Dynamic range: 142 dB (A weighted, gain = 10 dB, fader = 0 dB)
- Built-in timecode generator
- Kashmir microphone preamplifier with 76 db gain
- Noise: -128 dBu maximum (A-weighting, gain = 76 dB, 150 Ohm source impedance)
- Limiter per channel
- Low Cut Filter 40 Hz to 160 Hz, adjustable with 18 dB/Octave
- 5-in/2-out Audio Interface (USB-C)
- SD, SDXC or SDHC card recording up to 512 GB
- Timecode input

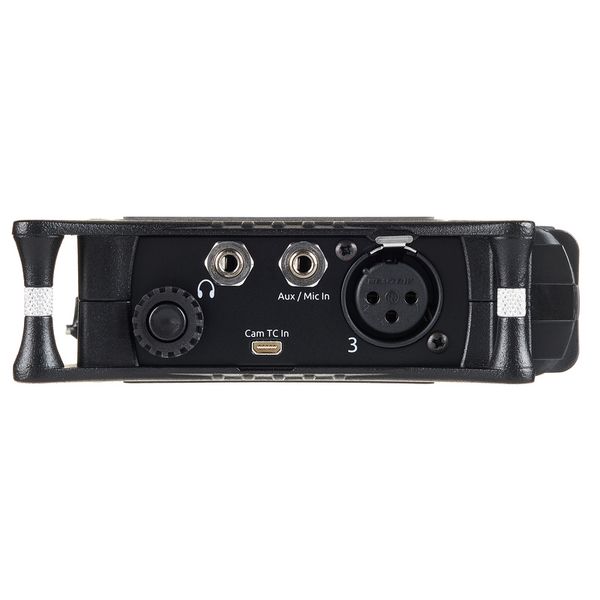

- 3 Mic/line XLR Inputs
- Stereo aux/mic input with 3.5 mm jack
- 48V Phantom power
- 3.5 mm Stereo output
- Headphone output
- Powered by 4 x AA batteries, bus-powered via USB-C or mains adapter
- Free Wingman app for remote control of the MixPre II series
- Scope of delivery: MX-4AA battery case and MX-PSU power supply unit
- Dimensions (H x W x D): 36 x 144 x 110 mm
- Weight: 0.48 kg (without batteries)
- Suitable bags: Art.484629, Art.484632 and Art.429455 (not included)
available since
September 2019
Item number
473239
sales unit
1 piece(s)
Recording / Playback Channels
5x2
Number of Mic Inputs
3
Number of Line Inputs
5
Number of Instrument Inputs
0
Number of Line Outs
2
Headphone Outs
1
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
No
Word Clock
No
Max. sample rate (kHz)
96 kHz
Max. resolution in bit
32 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Width in mm
144 mm
Depth in mm
110 mm
Height in mm
36 mm
Connection Format
USB port Type C, Type A
Recording Tracks
5
Microphone Inputs
3
48 V Phantom power
1
Line Inputs
3
Storage Medium
SD/SDHC/SDXC Card
Max. Memory
512
Headphone connection
1
Resolution max.
32 bit
Max. Sample Rate
192 kHz
Limiter
1
Recording Format
WAV
Power Feed
Power Supply, Batterie, Bus-powered
Dimensions
36 x 144 x 110 mm
Weight
480 g
Included In Delivery
MX-4AA Battery Box; Power Supply
Included in delivery
MX-4AA Battery housing; Power Supply
Zero latency monitoring
1
