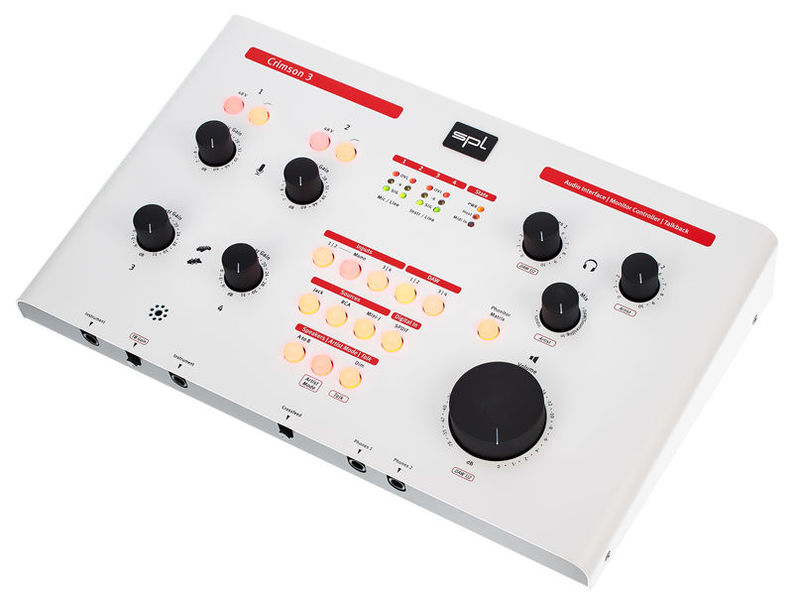

SPL Crimson 3 white

USB Audio Interface and Monitor Controller

  • 24 Bit/ 192kHz AD/DA converter
  • 2 Mic XLR inputs
  • 2 Hi-Z 6.3 mm jack instrument inputs
  • 4 Balanced 6.3 mm jack line inputs
  • 2 Stereo source inputs for speaker source (2x 6.3 mm jack + 2x cinch)
  • 2 Stereo headphone outputs - individually adjustable
  • Phonitor matrix
  • Talkback mic
  • 2 Stereo line outputs for two pairs of speakers (2x XLR + 2x jack output)
  • S/PDIF Input and output coaxial
  • MIDI in/ out
  • USB 2.0 connector
  • Operating voltage +/- 34 V for levels up to + 22 dBu
  • Switchable 48V phantom power
  • Pro-level-boost for consumer devices and MP3 players/ smartphones
  • Desktop case
  • Dimensions (W x H x D): 270 x 380 x 130 mm
  • Weight: 4 kg
  • Colour: White
  • Incl. USB cable

Further Information

Recording / Playback Channels 6x6
Number of Mic Inputs 2
Number of Line Inputs 4
Number of Instrument Inputs 2
Number of Line Outs 4
Headphone Outs 2
Phantom power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock No
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 330 mm
Depth in mm 207 mm
Height in mm 60 mm

These are other customers' choices:

Customers who looked at this item have bought these:

SPL Crimson 3 white
26% bought this exact product
SPL Crimson 3 white
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$629 Add to Basket
Universal Audio Apollo Twin USB Duo
11% bought Universal Audio Apollo Twin USB Duo $719
Mackie Big Knob Studio+
8% bought Mackie Big Knob Studio+ $245
Audient iD44
6% bought Audient iD44 $509
SSL 2+
5% bought SSL 2+ $274
Our most popular USB Audio Interfaces
4 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Show variations of this product
SPL Crimson 3 white
(4)
SPL Crimson 3 white

USB Audio Interface and Monitor Controller 24 Bit/ 192kHz AD/DA converter, 2 Mic XLR inputs, 2 Hi-Z 6.3 mm jack instrument inputs, 4 Balanced 6.3 mm jack line inputs, 2 Stereo source inputs for...

  • Recording / Playback Channels: 6x6
  • Number Of Monitoring Outputs (Stereo): 2
  • Headphone connection: 2
  • Number of Mic Inputs: 2
  • Talkback Function: No
  • Number of Line Inputs: 4
  • Built-in AD / DA converter: Yes
  • Number of Instrument Inputs: 2
  • Number of Line Outs: 4
  • Incl. Remot control: No
  • Headphone Outs: 2
  • Level Meter: Yes
  • Number of 2 track inputs: 0
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • Summing Function: No
  • Numer of AES/EBU Connectors: 0
  • Surround: No
  • Number of MADI Connectors: 0
  • Design: Desktop
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 330 mm
  • Depth in mm: 207 mm
  • Height in mm: 60 mm
  • Zero latency monitoring: Yes
SPL Crimson 3
(10)
SPL Crimson 3

USB Audio Interface and Monitor Controller 24 Bit/ 192kHz AD/DA converter, 2 Mic XLR inputs, 2 Hi-Z 6.3 mm jack instrument inputs, 4 Balanced 6.3 mm jack line inputs, 2 Stereo source inputs for...

  • Recording / Playback Channels: 6x6
  • Number Of Monitoring Outputs (Stereo): 2
  • Headphone connection: 2
  • Number of Mic Inputs: 2
  • Talkback Function: No
  • Number of Line Inputs: 4
  • Built-in AD / DA converter: Yes
  • Number of Instrument Inputs: 2
  • Number of Line Outs: 4
  • Incl. Remot control: No
  • Level Meter: Yes
  • Headphone Outs: 2
  • Number of 2 track inputs: 0
  • Phantom power: Yes
  • Number of S/PDIF Connectors: 1
  • Number of ADAT Connectors: 0
  • Summing Function: No
  • Numer of AES/EBU Connectors: 0
  • Surround: No
  • Number of MADI Connectors: 0
  • Design: Desktop
  • Ethernet: 0
  • Other Connectors: No
  • MIDI interface: Yes
  • Word Clock: No
  • Max. sample rate (kHz): 192 kHz
  • Max. resolution in bit: 24 bit
  • USB Bus-Powered: No
  • Incl. power supply: Yes
  • USB Version: 2.0
  • Width in mm: 330 mm
  • Depth in mm: 207 mm
  • Height in mm: 60 mm
  • Zero latency monitoring: Yes
$629 €578.99
Plus $32.75 shipping

The price in USD is a guideline price only!

Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
