Stairville B5R Beam Moving Head 5 B-Stock

B-Stock with Full Warranty

Return that may have slight traces of use.

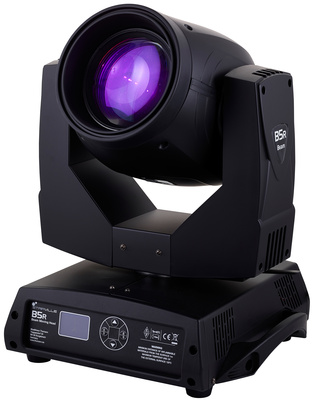

Stairville B5R Beam Moving Head 5R

The 5R Beam Moving Head by Stairville meets all requirements of this class with its excellent optics, enormous light output and extensive features. Thanks to the extremely bright Philips 5R lamp, the B5R is easy to use with its other peers from the 575 lamp class, and can even overshadow them. The HPB optics have been specially developed for the B5R Beam, providing a razor-sharp light projection.

Technical Specifications:

  • Light source: Philips Platinum 5R (included)
  • Beam angle: 0.6° - 4°
  • Control: DMX-512 (16/17 channels)
  • Digital LCD display for setting all functions and for manual control
  • Pan movement: 540°
  • Tilt movement: 270°
  • Ultra high-speed stepper motors for fast and smooth 16-bit movements
  • Adjustable pan / tilt speed
  • Strobe / Shutter: Shutter features preprogrammed strobe effects, 0-13 Hz
  • Dimmer: linear 0-100%
  • Colour wheel: 14 colours + white, half-colours
  • Gobo wheel: 17 static gobos + open
  • Effects: rotatable 8 facet prism with preprogrammed macros
  • Focus / Zoom: motorised zoom / focus lens with very fine adjustments
  • DMX input and output: 3 + 5-pin XLR
  • Power supply: Power Twist
  • Voltage supply: 100-240 V, 50/60 Hz
  • Max. power consumption: 230 W
  • Protection class: IP20
  • Includes mounting bracket with Quick-Lok locking system
  • Dimensions (head up, L x W x H): 39 x 33 x 48.5 cm
  • Weight: 19.5 kg
  • Available as a tour pack: Article Nr 405832 (not included, must be ordered separately)
  • Note: Only the Philips MSD Platinum 5R may be used as a replacement lamp! Available under Article Nr 258214 (not included, must be purchased as a separate item)

Further Information

Type of lamp Metal Halide Lamp
Light output 160 W
Colour Mixing Colour-Wheel
Gobo wheel Yes
Prism Yes
Motorized focus Yes
Motorized zoom Yes
$639
The shipping costs are calculated on the checkout page.
Only a small number of pieces available
Only a small number of pieces available

This item is in stock and can be dispatched immediately.
