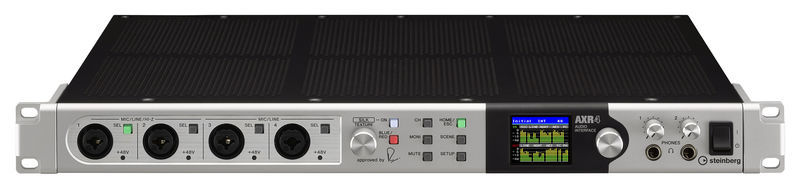

Steinberg AXR4

28 x 24 Thunderbolt 2 Audio Interface

  • 32-Bit integer / 384 kHz recording and playback
  • 4 AXR Hybrid Microphone Preamplifier with Rupert Neve Designs SILK Circuit Emulation
  • SSPLL technology for extremely low jitter values
  • DSPX chip and dspMixFX technology for latency-free monitoring with DSP-based effects
  • 28 x 24 Matrix mixer
  • 48V Phantom power
  • 2 Mic / Line / Instrument combo inputs: 6.3 mm XLR / jack
  • 2 Mic / Line combo inputs: 6.3 mm XLR / jack
  • 8 Line inputs: 6.3 mm Jack
  • 8 Line outputs: 6.3 mm Jack
  • 2 ADAT / S/PDIF inputs and outputs
  • AES/EBU Sub-D25
  • 2 Stereo headphone outputs: 6.3 mm Jack
  • MIDI input and output
  • 2 Thunderbolt 2 Connectors
  • BNC word clock input and output
  • LCD
  • Power supply connection
  • Up to three AXR4 cascadable
  • Design: 19"/1 U
  • Dimensions (W x H x D): 480 x 45 x 378 mm
  • Weight: 4.6 kg
  • Includes Cubase AI version with full 32-bit support

Further Information

Recording / Playback Channels 28x24
Number of Mic Inputs 4
Number of Line Inputs 12
Number of Instrument Inputs 2
Number of Line Outputs 8
Headphone Outs 2
Phantom Power Yes
Number of S/PDIF Connectors 2
Number of ADAT Connectors 2
AES/EBU Connectors 1
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors Yes
Word Clock 1xIn, 1xOut
Max. Samplerate 384 kHz
Max. Resolution in Bit 32 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver No
Thunderbolt Version 2
Width in mm 480 mm
Depth in mm 378 mm
Height in mm 45 mm
2 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Überragendes Interface
Der Klimperer, 01.12.2019
Da ich viele Produkte von Steinberg nutze, Nuendo, Dorico usw., wollte ich ein Interface von Steinberg ausprobieren. Ich war nicht enttäuscht und behielt das Interface als das Herzstück des Studios. Der Klang ist überragend und gefällt mir von allen Wandlern, die ich hatte und habe, am besten. Der Klang ist natürlich, die Wiedererkennbarkeit der echten akustischen Instrumente ist frappierend. Nach einem Monat mit dem Interface kann ich von der Ermüdungsfreiheit mit dieser Klangqualität nur schwärmen.
Das Interface ist nicht so kompakt wie beispielsweise RME-Interfaces. Und darf laut Handbuch nicht vertikal eingebaut und betrieben werden wegen ungleichmäßiger Wärmeverteilung. Die löchrige Gehäuse-Oberseite und die hellen Lämpchen sind doof. Aber das sind Kleinigkeiten verglichen mit dem, was man erhält.
Wer auf der Suche nach einem herausragend klingenden, durchdachten und zuverlässigen Audio-Interface ist, sollte dieses unbedingt ausprobieren.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
it Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality
Controllate i singoli canali microfonici
P la gomma, 24.07.2019
La macchina ha un rapporto qualità/prezzo quasi imbattibile ma mi è arrivata con un canale microfonico difettoso. Non funziona il gain del 3 canale. L’ho rimandata indietro e sto aspettando che me la rispediscano riparata...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
$2,399
The shipping costs are calculated on the checkout page.
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
