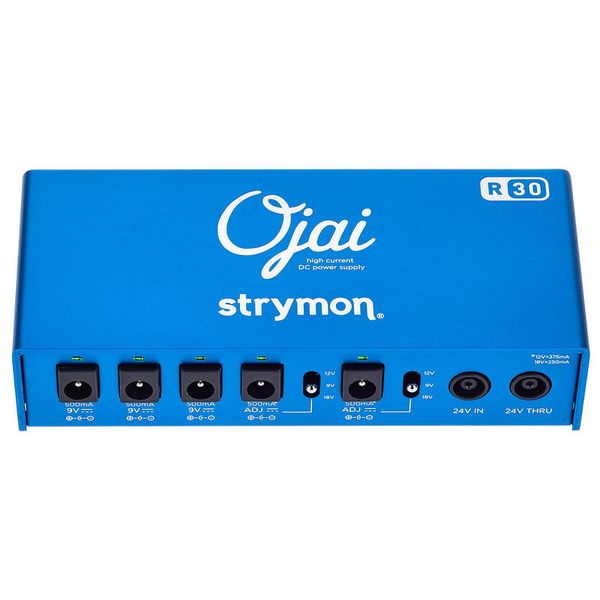

Strymon Ojai R30 Expansion Kit

Please activate your javascript. You’re currently missing out on our lovely designed product gallery and its useful features (zoom into the very last pixel of each picture, 360 view, videos and more). We wouldn’t miss them for the world.

Multi-power supply for effects pedals

To supplement an existing Strymon power system
Flat profile
Switched-mode power supply technology
The 24 V thru output enables expansion with the OJAI and the OJAI R30 (sold separately)
Connections: Output 1-3: 9 V DC @ 500 mA (individually isolated) - Output 4 & 5 : 9 / 12 / 18 V DC @ 500 / 375 / 250 mA (individually isolated)
Dimensions (W x D x H): 130 x 58 x 29 mm
Weight: 171 g
Made in the USA

Note: power adapter is not included.

Included cables:

EIAJ-05 power adapter cable (45.7 cm long, to connect the Ojai to a PS-124, Zuma or Zuma R300 power supply)
5 Pedal cables: 5.5 x 2.1 mm angled barrel connector to 5.5 x 2.1 mm angled barrel connector, length: 45.7 cm

30 30-Day Money-Back Guarantee

3 3-Year Thomann Warranty

available since February 2018

Item number 428229

sales unit 1 piece(s)

$144

The shipping costs are calculated on the checkout page.

Sales Rank

in Guitar Effect Power Supplies

17 Customer ratings

5 16 Customers 4 1 Customer 3 0 Customers 2 0 Customers 1 0 Customers

4.9 / 5

quality

Review guidelines

13 Reviews

Small and powerful

Dect 24.10.2019

I had been using Voodoo Labs power supplies for years before the Strymon units came onto the market and curiosity got the better of me so I ended up trying the Zuma. I could't get over the difference. I mean Voodoo labs are great supplies and it was not exactly noisy but the Strymon made my rig completely quiet. Not only that but because it doesn't have a standard toroidal transformer in it, it also doesn't give off much EMI so putting a wah pedal right on top of it doesn't cause any interference. Add to that that you have some ports being switchable to 12V or 18V and that every port gives you 500mA at 9V. The big advantage of every port being high current means that swapping out a low current draw pedal with a high current means you're still covered. Then if you add more pedals you can just expand your power system with another Strymon, be it the Ojai, Ojai R30 etc. My board has grown quite a bit so I have already added an Ojai and Ojai R30 to my board and all is well. These are the only power supplies I will use now and are worth every penny as far as I'm concerned.

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Perfect alimentation

alt3 26.12.2019

I would prefer an ojai r30 + an expansion kit to enlarge my pedalboard than a single power block, to avoid use of longer cable (personal preference).
With this power block, no need of noise reduction pedal that would affect eventually my tone. With Ojai, the pedals run perfectly.

Report

Great power

Christi R 29.01.2019

All across the world I use the Strymon power supplies and have no issue with power at all. Even dodgy venue electricity that usually sends a daisychain powersupply into extreme noise.

Worth it more than putting your money in any guitar pedal.

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

Klasse Netzteil zur Erweiterung

Breitner 03.05.2018

Das Expansion Kit ist eine sehr gute Möglichkeit für die Stromversorgung größerer Pedalboards in Verbindung mit anderen Strymon Netzteilen.

Das Netzteil ist hochwertig verarbeitet und dabei sehr leicht. Das Anschrauben des Gehäuses an ein Pedalboard ist einfach und die Verbindung sehr stabil. Die mitgelieferten Kabel sind sehr gut isoliert und wertig verarbeitet. Es gibt quasi keine Nebengeräusche beim Betrieb von Pedalen. Man braucht sich keine Gedanken über ausreichende Stromversorgung einzelner Pedale mehr zu machen. Die Versorgung mit unterschiedlichen Spannungen ist ebenfalls möglich. Einziger kleiner Nachteil aus meiner Sicht: die Kabel haben alle nur gewinkelte Stecker. Ein, zwei Kabel mit geraden Steckern wäre für das Anschließen manche Pedale praktischer.

Insgesamt ein sehr flexibles und handliches Netzteil.

Report

Read all reviews
