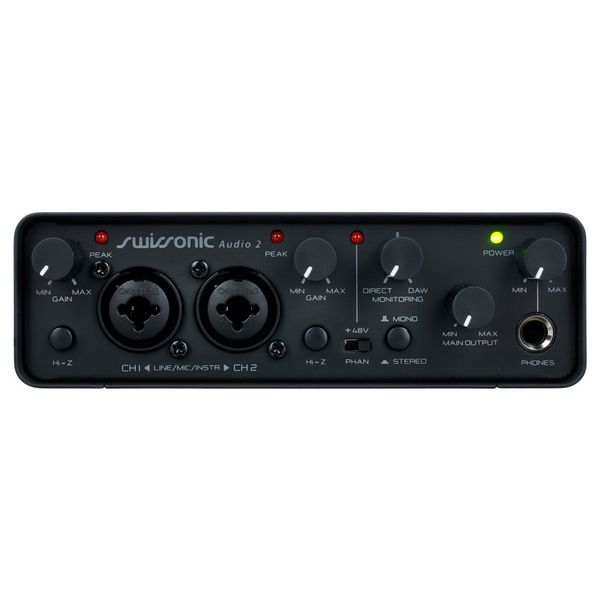

2x2 USB 2.0 Audio Interface
- Resolution: 192 kHz / 24 Bit
- 2 Front combo inputs Mic/Line/Inst: XLR/jack
- 2 Microphone preamps with 48 V phantom powering
- Outputs: 2x 6.3 mm TRS jacks
- Direct monitoring: switchable between mono and stereo mode
- Master volume control on front panel
- Stereo headphone output with volume control
- Phone I/O: 3.5 mm TRRS jack
- USB bus-powered
- Supports Windows 7, Windows 8 / 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound support
- Supports Mac via Apple's native CoreAudio USB audio drivers (no driver installation required)
- Dimensions (W x D x H): 145 x 110 x 44 mm
- Weight: 0.6 kg
Software package (download):
- Steinberg Cubase LE: with 23 VST audio effects HALion Sonic SE 3, Groove Agent SE 5.
- IK Multimedia Amplitube 5 SE guitar effects plug-in with 12 amps, 13 cabinets and over 30 effects
- iZotope Ozone 10 Elements: easy-to-use mastering plug-in with AI-supported matching technology
available since
December 2022
Item number
541118
sales unit
1 piece(s)
Recording / Playback Channels
2x2
Number of Mic Inputs
2
Number of Line Inputs
2
Number of Instrument Inputs
2
Number of Line Outs
2
Headphone Outs
1
Phantom power
Yes
Number of S/PDIF Connectors
0
Number of ADAT Connectors
0
Numer of AES/EBU Connectors
0
Number of MADI Connectors
0
Ethernet
0
Other Connectors
No
MIDI interface
No
Word Clock
No
Max. sample rate (kHz)
192 kHz
Max. resolution in bit
24 bit
USB Bus-Powered
Yes
Incl. power supply
No
USB Version
2.0
Width in mm
145 mm
Depth in mm
110 mm
Height in mm
44 mm
Connection Format
USB port Type B
Included in delivery
USB cable
Zero latency monitoring
1
