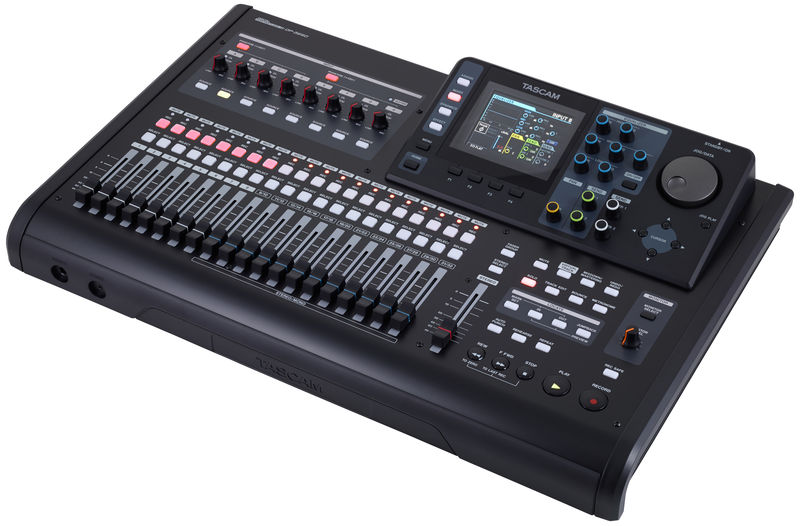

Tascam DP-32 SD

32-Track Digital Portastudio

  • Colour display (LCD) and channel strip with twelve rotary encoders
  • 8 Balanced microphone inputs on XLR / TRS combo jacks with phantom power
  • 1x Switchable HiZ input for guitar / bass
  • 8 Mono tracks
  • 12 Stereo tracks (also mono usable)
  • 8-Track recording at 44.1/48 kHz / 16/24 bit on SD-Card
  • 32-Track playback
  • Virtual tracks
  • Stereo master track
  • 40-Channel mixer
  • Controller for EQ, panorama and effect AUX out(put/line)
  • Stereo line output RCA
  • Balanced monitor output 6.3 mm jack
  • 2x AUX 6.3 mm jack
  • Headphone output
  • Foot pedal connector
  • Input Effects: Limiter, compressor, noise suppressor, exciter as well as mixing and mastering effects
  • Built-in tuner and metronome
  • USB 2.0 connector
  • Dimensions (W x H x D): 514 x 104 x 340 mm
  • Weight: 6.2 kg

Further Information

Number Of Tracks 32
Simultaneous Recording: Amount Of Tracks 8
Effects Yes
Storage Medium SD Card
Phantom power Yes
XLR Connectors 8
Jack Connectors 8
RCA Connectors Yes
MIDI Interface None
USB connection Yes
Digital Connections None
Miscellaneous Connectors Foot Switch
Headphone connection Yes

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 5 % additionally!
Tascam DP-32 SD + the t.bone SC 1100 + Cordial CAM 9 BK +
8 more
Configure bundle now
starting from $698

These are other customers' choices:

Customers who looked at this item have bought these:

Tascam DP-32 SD
40% bought this exact product
Tascam DP-32 SD
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
$577 Add to Basket
Zoom LiveTrak L-12
20% bought Zoom LiveTrak L-12 $533
Zoom LiveTrak L-20
10% bought Zoom LiveTrak L-20 $879
Tascam Model 12
9% bought Tascam Model 12 $595
Tascam DP-24 SD
8% bought Tascam DP-24 SD $475
Our most popular Multitrack Compact Studios
100 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 /5
  • handling
  • features
  • sound
  • quality
Total
handling
features
sound
quality
Studio space saver worth the money
20.04.2016
I use the Tascam DP-32 SD in my professional studio to mainly record accoustic music and to create jingles for websites or radio ads.
My set up is very simple because the DP-32 SD is also a very straight forward portastudio and easy to use as its forbearers. I'm running the basic recorded instruments directly into the DP-32 SD, overdub, mix, master and than print directly onto the inserted SD card. The output recorded is exactly as recorded and all buttons and faders react exactly to how they are manipulated. The buttons have that loud noisy click sound when pressed and this is sometimes annoying when mixing silenty. Maybe Tascam should look into this loud button click sound.

The available build in effects are simple to use but one need a bit time to fiddle around until you can really use them, otherwise they can seriously mess up your mix.
The channel audio level meters are exact but the monitor display is a little bit small. I've found the audio outputs a bit limited at the back incase one want to have external effects or just sent the sound to reference monitors. A very robust build piece of hardware but sort of light on the weight side. A second headphone output would also be usefull in order to hear what the musicians are playing because now, only the artist can have headphones. I've hooked it up to another headphone distributor and this way, more musicians can hear each other during the recording session. Otherwise, I recommend it to most studios that want a piece of equipment that don't require lots of cables, space, ouboard gear.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
Patience Required
TonyFlange, 18.12.2020
The instructions for this machine could be part of a university course. It's quite amazing piece of kit given the low price and amazing recording quality; and enough inputs for a large ensemble. Don't make my mistake and buy enormous memory cards as the max. compatible is 32gb (this was hard info to find). This is still a lot of recording time obviously. The export to PC function is great. I generally export as wavs for the mix as I find it easier, but I'm sure the onboard functions are brilliant with a little more practice. Enjoy
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
Standalone Multitrack Recorder
20.10.2016
I purchased the DP32SD to replace my Boss BR1600CD, mainly because of the more 'up-to-date' SD card storage, file format and quicker file transfer. The price was also attractive. I'm not a fan of computer based recording, so I was looking for a more traditional multi-track recorder like this.
It doesn't take long to get up and running and is pretty intuitive. I've had the unit for 12 months now and re-recorded about 200 songs with another 40 or so to go!
It is not as easy as the Boss regarding the mastering and I'm still in the process of realising how to use the mastering compressor to achieve the desired sound (comparing it directly to the Boss masters)
Other people have suggested a second headphone output would be useful, which I agree with. The unit seems robust enough, but I only use it in a home studio setup.
I'm also still using the Boss for insert effects, because it has more presets and adding send effects and compression on the already recorded track is also easier on the Boss.
You can't get a Boss now anyway, so if you are looking for a standalone multitrack recorder, the Tascam is good value for money.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
sound
quality
Great machine but no midi...
Pgdid, 30.08.2020
Honestly, I didn't pay that much attention when I ordered it, but when I installed it, it was a hell of a surprise: where is the midi ??? And how can I synchronise and record all my tracks without midi??? I tried to use the tape sync of my old Roland R70, but in vain....
Eventually I solved the problem with a 2bar click at the beginning of the song, that I record for every track, and that I manage to play together with the track want to record... and honestly it's not that difficult...
PROS :
- Great machine, very userfriendly with the EQ and send knobs
- the price! When I was young, I used to dream of a cassette 8 track tascam which was worth 2.500 euro, and now I get a 32 digital track for about 500 euro!
- the footswitch (sold separately) is VERY useful !
- sd-card... crazy how much you can record on a 5 giga....

CONS :
- midi, midi, midi... why???
- the fx processor... kind of bad...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?
