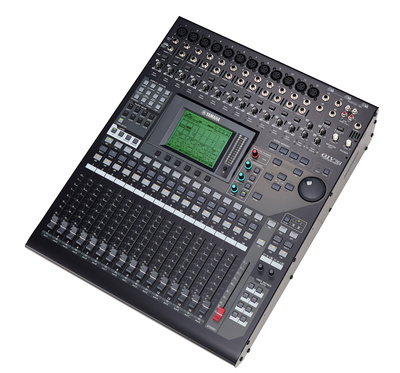

Yamaha 01V96i B-Stock

B-Stock with full warranty

Slight traces of use

Digital Mixer

  • 40 Mix channels (32 mono + 4 stereo)
  • 16 Analogue inputs (12 x XLR / jack Mic / Line + 4 x jack line)
  • Stereo Out XLR balanced
  • Monitor Out 2 x jack balanced
  • 4 x Jack Omni Out balanced
  • ADAT I / O
  • S / PDIF I / O coax
  • 24bit / 96kHz AD / DA converter
  • USB 2.0 connection for 16x In / Out up to 96 kHz
  • 8 x Mix Bus
  • 8 x Aux Bus
  • VCM DSP effects
  • REV-X Reverb
  • Up to 4 simultaneous effects (at 24bit / 44.1 / 48kHz)
  • 4-Band EQ + compressor and gate per mono channel
  • 100 mm motor fader
  • Word Clock
  • MIDI In / Out / Thru
  • DAW support
  • Studio Manager V2 support
  • Expansion slot
  • Includes Cubase AI6
  • Dimensions (W x H x D): 436 x 150 x 548 mm
  • Weight: 14 kg

Further Information

Max.number of input channels 40
Microphone Inputs 12
Analog Line Inputs 16
Analog Line Outputs 4 x Jack, 2 x XLR
Analog in/ out with plug-in card expandable Yes
Digital Inputs ADAT, S/PDIF
Digital Outputs ADAT, S/PDIF
Digital in-/ outputs expandable Yes
Word Clock Yes
Motorfader Yes
Computer interface USB
MIDI-interface Yes
6 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.8 / 5.0
  • handling
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
6 written ratings Read all reviews
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality

Class all-rounder now finally with USB interface!

Dreadz, 27.02.2012
After intensive tests for stage and studio situations, I can say: I am completely satisfied and simply impressed by the simple handling of the USB connection!

As with the 01V96 V2 / VCM, there is pretty much everything you need and the menus for scenes, patching, routing, dynamics, EQ's and effects can be used quite simply and intuitively.
The 17 Motorfaders loosen beautifully and react promptly.

16 channels (up to 32) can be mixed live and sent to the PA and 4 Omni-Outs, as well as easily recorded via USB. Cubase AI6 is provided, but unfortunately only works with Mac or Win7. Recordings can be made just as well with other versions of Cubase, ProTools, Nuendo, etc., since the console is available directly with the usual DAW programs as a USB interface.
Since you can also play 16 channels via USB into the console and send to the PA, I have my sound signals with Soundchecks already before the band arrives! Or I can mix a studio in the studio simply times with the desk. Everything was very convenient!

Although a maximum of 16 channels can be input and played via USB, the console can be extended to 24 channels via ADAT for live situations. If you add another card (eg Yamaha MY16-AT), you can use all 32 channels of the console. Several consoles can also be cascaded.

Many want their successor to have a touch screen. Yes, would be nice and would speed up some operations. But by the simple control and synchronization with the Yamaha Studio Manager, you really miss nothing more !!! With a laptop or tablet PC you almost feel like sitting at one of the big brothers of this console!

Still a frequent criticism were the missing faders for subgroups, etc. YES, synonymous they would have been nice. But in the end, this is all a question of habit. A pressure on the master layer and I have quasi 16 group fashions, if one wants so ... Well ... The prices of the large consoles partly already their right. But here you get a relatively small amount of money.

CONCLUSIONS: With the Yamaha 01V96i, you get a real small "egg-laying woolmilchau" for stage and studio in the semiprofessional to professional area into the house! And the black look also makes a real difference!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
sound
quality

New USB feature is great!

Christian021, 05.07.2012
I replaced my 01v96 / v2 with this new "i" version. I was only critical if the drivers for the Mac synonymous probably their service (Yamaha had me already with mLan quite vera ***! Was rausgeschmissenes money ...) - but luck had!
Software installation is not a problem, audio and Midi runs clean and stable on the Mac Pro (OS 10.6.8), also the sampling rate is no problem. Whether 96kHz or 48 - everything turns clean and crisp, and the desk can remain clock master. (The documentation for the driver is not true!)
Only the "auto-install" routine from the Logic does not automatically recognize the 01v as a (HUI) controller. Hand-written everything wonderful.
Sound differences to the predecessor I can not determine. The previously optional VCM effects are "quite nice", but have not completely struck me now from the stool.
The studio manager software from Yamaha is still somewhat tough and habituationig and not quite "Mac-like", but does without complaint their service.

The big hook on the desk is for me still the Spartan configuration with analog outputs: Why only 4 Omni outs and not 8 !? The are with me already with the 5.1 intercept fully occupied. And the one card slot also has a card in it for more inputs ...
Overall however still a very powerful and ausgefuchste pult (especially for the price), which of course has a "old-fashioned" from the operation now. (Hazy LCD and data wheel ...) But for the abundance of functions in size and at the price actually unrivaled.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
