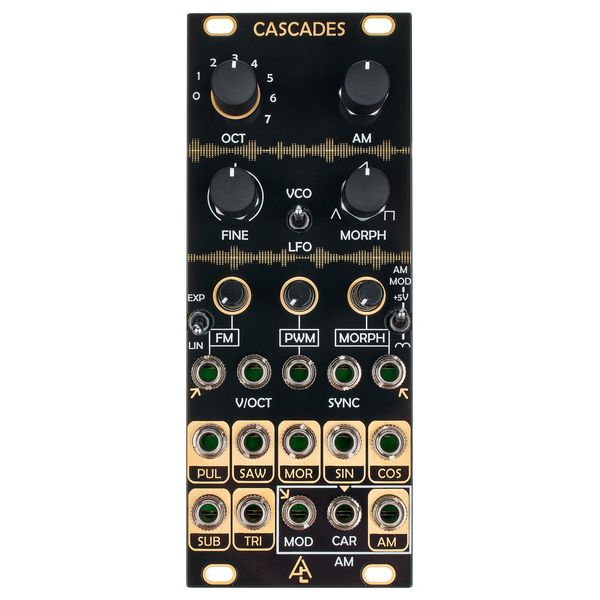

After Later Audio Cascades
Start 360°
Eurorack Module
- Analogue through-zero oscillator
- Octave selector and fine-tuning controls
- Adjustable waveform morphing from triangle to sawtooth to pulse with separate output and CV input with attenuator
- Amplitude modulation with intensity control, offset switch, input for carrier signal and dedicated output
- Switchable LFO mode
- FM input with attenuator, switchable between linear and logarithmic characteristics
- Input for pulse-width modulation with attenuator
- Inputs for pitch (1V/oct.) and sync
- Outputs for pulse, sawtooth, triangle, sine, cosine and suboctave
- Can be combined with other modules of the COCO system (Canyon, Valley, Brooks)
- Power consumption: 105mA (+12V) / 80mA (-12V)
- Width: 10 U
- Depth: 25 mm
available since
January 2023
Item number
558056
sales unit
1 piece(s)
Analog
Yes
Digital
No
Width
10 TE / HP
Show variations of this product
Compare options
-
